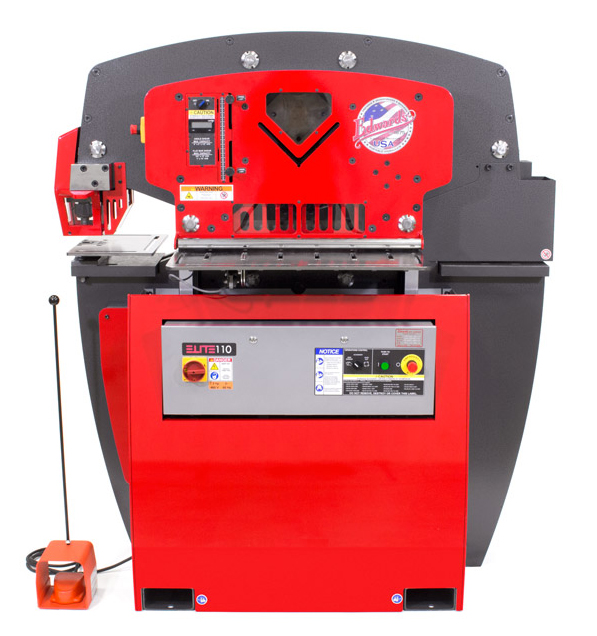

Model: Elite 110
Punch Capacity: 1-3/8” Hole Thru 1” Plate
Year: New
Type: Hydraulic
SPECIFICATIONS:
PUNCHING:
Max Tonnage…………… 110 Ton
Punch Capacity………… 1-3/8″ Dia thru 1″ Plate
Max. Stroke Length…….. 1-13/16″
Throat Depth………….. 11″
SHEARING:
Flat Bar (14″ Blade)…… 14″ x 3/4″
12″ x 1″
Angle Cutting @ 90 Degree. 6″ x 6″ x 1/2″
Round Bar…………….. Up to 1-1/4″
Square Bar……………. Up to 1-1/4″
Coper Notcher…………. 2-1/2″ x 6″ x 1/2″(Optional)
Vee Notcher…………… 3″ x 3″ x 1/4″(Optional)
Motor Size……………. 7.5 HP – 220V – 3 Phs
Weight……………….. 5380 Lbs
Dimensions (LxWxH)…….. 57-1/4″ x 42-3/8″ x 66-1/16″
EQUIPPED WITH:
(4) Separate Work Stations:
Punching Station
Flat Bar Shear
Angle Shear
Open Tooling Station
Hydraulic Hold Down
E-Stop/Lockout – Tagout
Movable Foot Pedal
Electric Stroke Control
Swing Away Stripper Assembly
Roller Encoder Measuring System
Quick Change Punch Assembly
Central Lubrication System
Premium Guaging Tables
LED Lighting
Hydraulic Accessory Pack
OPTIONAL ACCESSORIES:
440V – 3 Phs
220V – 1 Phs
Please Contact us for Complete List of Optional Accessories
COMMENTS: Mfg. in U.S.A.
