85 TON SCOTCHMAN ... IRONWORKER
Click to enlarge
HomeIronworkersIronworkers - New & Used 85 TON SCOTCHMAN … IRONWORKER
Previous product
44" CONTROLLED AUTOMATION ... BEAM DRILLING LINE
44" CONTROLLED AUTOMATION ... BEAM DRILLING LINE
Back to products
Next product
74 TON CONTROLLED AUTOMATION ... ANGLE/BAR LINE
74 TON CONTROLLED AUTOMATION ... ANGLE/BAR LINE

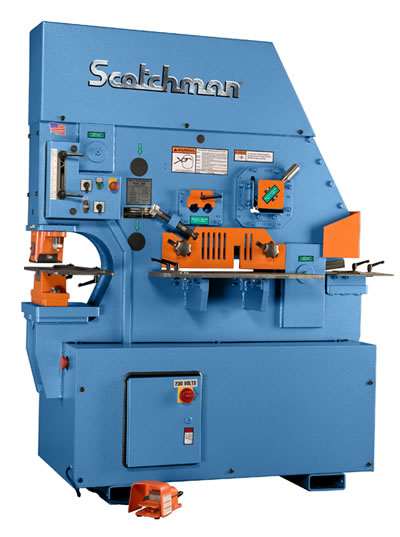

85 TON SCOTCHMAN … IRONWORKER

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: FI8510-20M … (5) Work Stations
Punch Capacity: 1-1/16” Hole Thru 1” Plate
Type: Hydraulic
Year: New

SPECIFICATIONS:

PUNCHING:
Max. Tonnage………. 85 Ton
Punch Capacity…….. 1-1/16” Hole Thru 1” Plate
Throat……………. 10″

BAR SHEAR:
Flat Max. Thickness… 12″ x 1”
Flat Max. Width……. 20” x 3/4”

ANGLE SHEAR:
Max. Size…………. 6′ x 6′ x 1/2″

COPER NOTCHER:
Max Size………….. 3″ x 5″ x 1/2″

Motor Size………… 5 HP – 220/440V – 3 Phs
Weight……………. 4555 Lbs
Dimensions………… 67″(l) x 30″(w) x 77″(h)

EQUIPPED WITH:

Round Punch & Die Max. 1-1/4” Diameter
Die Holders w/2″ Inserts
Punch Nut w/Wrench & Stripper
Remote Foot Pedal
Punch Gauging Table w/Fence & Scale
Adjustable swing Away Stripper
Shear Table w/Miter Fence
Notcher Table w/Scales & Guides
20″ Flat Bar Shear w/(4) Way Reversible Blade
All Standard Safety Guards

MACHINE FEATURES:

(5) Separate Work Stations:

Punching
Flat Bar Shear
Coper Notcher
Angle Station
Round Bar Station

Punch Jog Control
Adjustable Electric Stroke Controls w/Scale
Keyed Punch Ram
Forklift Accommodation
Emergency Stop Button w/Lock & Tag Out

OPTIONAL ACCESSORIES AVAILABLE

5 HP – 220V – 1 Phs
Work Light
12″ Brake Attachment w/2″ Opening Bottom V-Die
12″ Brake Table w/Scale & Squaring Arm
24″ Brake Attachment w/2″ Opening Bottom V-Die
24″ Brake Attachment w/2″ Opening Bottom V-Die
Brake Length Gauge w/Scale
Pipe Notcher Housing
Punch Pusher for Pipe Notcher
Upper & Lower Sch. 40 Notching Dies (3/4″ – 2″ each)
90˚ Vee Notcher
Channel Shear (2″ to 6″ Adjustable)
Square Tube Shear (1/2″ – 2″ x 12 ga)
Fabrication 24″ Brake Package

24″ Brake Attachment
24″ Brake Table w/Scale & Squaring Arm
Brake Table Gauge w/Scale

COMMENTS:  Mfg. In USA

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 9743 Category: Ironworkers - New & Used
