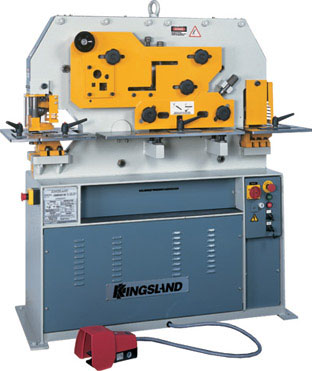

Model: Compact 50 Ton
Punch Capacity: 7/8″ Thru 5/8″
Type: Hydraulic
Year: New
SPECIFICATIONS:
Punching:
Maximum Tonnage …… 50 Ton
Punch Capacity ……. 7/8″ Thru 5/8″
Throat …………… 6-7/8″
Angle Shear:
Max @ 90 Deg. …….. 4″ x 4″ x 3/8″
Rod Shear:
Maximum Round …….. 1/4″ up to 1-3/16″
Maximum Square ……. 1-3/16″
Bar Shear:
Flat Max Thickness … 8-5/8″
Flat Max Width ……. 12″ x 1/2″
Coper Notcher:
Size …………….. 1-3/8″ x 3″ x 5/16″
Motor Size ……….. 4 HP – 220/440V – 3 Phs
Weight …………… 2585 Lbs
Dimensions………… To be Advised
EQUIPPED WITH:
(5) Separate Work Stations:
Punch
Angle Shear
Rod Shear
Bar Shear
Coper Notcher
7/8″ Round Punch & Die
Easy Change Punch Holder & Adapters
Swing Away Punch Stripper Unit
Universal Die Bolster for Punching of Flat Bar & Angle
Repetition Support Table for Punch & Shear
Blades for Cropping Angle & Round Bar
Blades for Shearing Flat Bar
Service Tool Kit
39″ Ruled Length Stop
Hydraulic Oil
EQUIPPED WITH:
Power Inching & Accurate Foot Pedal Control w/ Automatic Return of Stroke
Fully Adjustable & Positive Linear Stroke Control
Section Crop Station Accepts Optional Blades
Rectangular Notching
Full Length Shear Blades
Work Station Safety Guards
Mitter Cutting Facility – Angle & Shear Stations
One Shot Lube
Low Pressure Hydraulic System
Overload Protection (Motor & Hydraulic)
Low Noise Operation
Complete Mobility
OPTIONAL ACCESSORIES (P.O.R.):
Available Upon Request
COMMENTS: Mfg. in Europe
