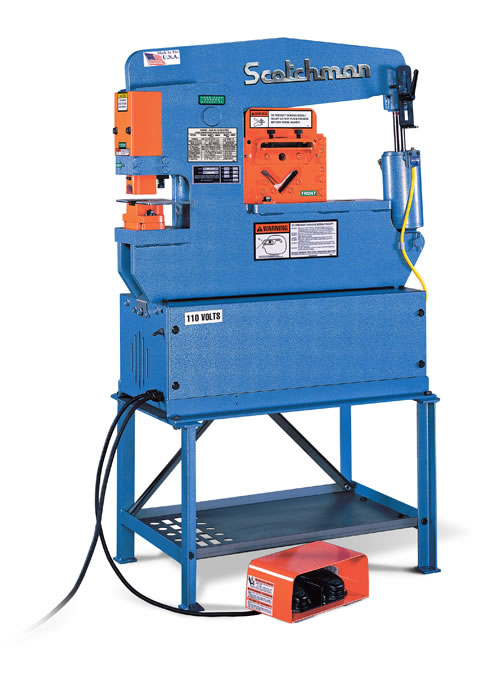

Model: Porta-Fab … (2) Work Stations
Punch Capacity: 1-1/8” Hole Thru 1/2” Plate
Type: Hydraulic
Year: New
SPECIFICATIONS:
PUNCHING:
Max. Tonnage………. 45 Ton
Punch Capacity…….. 1/8” Hole Thru 1/2” Plate
Throat……………. 4-1/4″
BAR SHEAR:
Flat Max. Thickness… 4″ x 1/2”
Flat Max. Width……. 6” x 3/8”
ANGLE SHEAR:
Max. Size…………. 6” x 6” x 1/2”
Motor Size………… 2 HP – 110V – 1 Phs
Weight……………. 725 Lbs
Dimensions (LxWxH)…. 35-3/4″ x 18″ x 38-3/4″
EQUIPPED WITH:
Round Punch & Die Max. 1” Diameter
2″ Die Holder
Punch Nut w/Wrench & Stripper
Universal Bolster for Punching of Flat Bar & Angle
Movable Foot Pedal
Machine Stand w/Punch, Die & Tooling Storage
All Standard Safety Guards
MACHINE FEATURES:
(2) Separate Work Stations:
Punching Station
3-in-1 Combination Tool with:
– Angle Shear
– Rod Shear
– Flat Bar Shear
Adjustable Electric Stroke Control w/Scale
Keyed Punch Ram
OPTIONAL ACCESSORIES AVAILABLE
2 HP – 220V – 1 Phs
Work Light
6″ Brake w/4 Way Lower V-Die
8″ Brake w/2″ Opening Bottom V-Die
12″ Brake Attachment w/2″ Opening Bottom V-Die
12″ Brake Table w/Scale & Squaring Arm
Brake Length Gauge w/Scale
Open End Brake Max 1/4″ x 3″ Flat or Angle
Pipe Notcher Housing
Tool Table Pusher for Pipe Notcher
Upper & Lower Sch. 40 Notching Dies (3/4″ – 2″ each)
Coper Notcher
90Ëš Vee Notcher
Rod Shear (1″ Rd or 3/4″ Sq)
Square Tube Shear (1/2″ – 2″ x 14 ga)
Fabrication 12″ Brake Package
12″ Brake Attachment
12″ Brake Table w/Scale & Squaring Arm
Brake Table Gauge w/Scale
COMMENTS: Mfg. In USA
