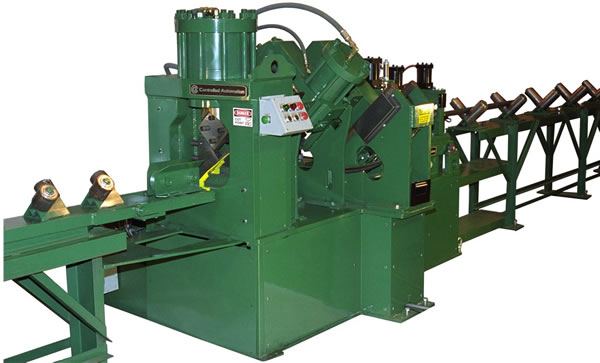

74 TON CONTROLLED AUTOMATION … ANGLE/BAR LINE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: ABL-74T

Year: New

SPECIFICATIONS:

PUNCH CAPACITY
    Punching Tonnage … 74 Tons
   Max Hole Size …… 1-9/16” Thru 1/2”

SINGLE CUT SHEAR:
     Shearing Tonnage …. 215 Tons

ANGLE:
      Max …………….. 6” X 6” X 1/2”
      Min …………….. 1-1/2” X 1-1/2” X 3/16”
   Max Length ………. 40’ (60’ Optional)
   Min Length ………. 6’

FLAT BAR:
      Max …………….. 1/2” X 6”
   Min …………….. 1/4” X 1-1/2”
   Max Length……….. 40’ (60’ Optional)
   Min Length ………. 6’
Positioning Speed……. 0-180 FPM
Positioning Accuracy…. +/- 1/32”
Hydraulic Power Unit…. 15 HP
CNC Control ………… Windows XP

EQUIPPED WITH:

Control Windows XP CNC w/Networking Ability
Wheel Material Feed & Wheel Measuring
Single Cut Shear Design
(2) Rugged Punch Units
“Floating” Frames That Reduce Stress On The Wheel Assemblies
Four Different Radii Designed To Match The Fillet In The Angle
Four Sided “Sharpen Able” Rotating Blade

COMMENTS:

The ABL-74T Is Designed To Be Rugged, Reliable, Simple To Operate, And Easy To Maintain.
Most Of The Plumbing (Hydraulic And Air) Is Run Inside The Machine Base For Protection, A Smaller Footprint, And To Keep The Machine Base Clean.

Mfg. In U.S.A.

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL: 614-914-5087 / Request Quote

F.O.B.: Columbus, Ohio

TERMS: Check W/Order

All prices subject to change without notice

SKU: 7059 Category: Angle Line
