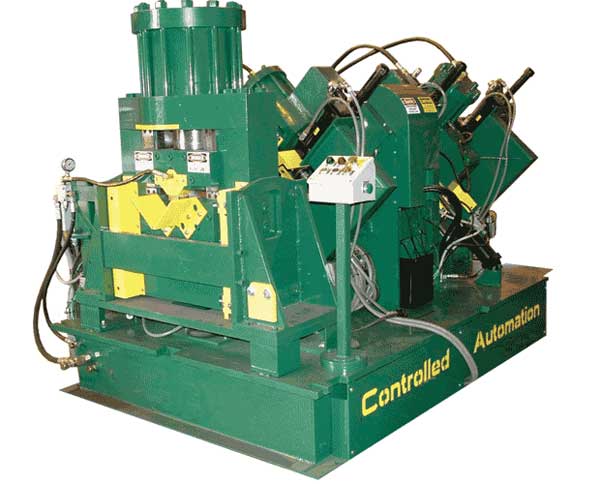

Model: ABL-86T
Year: New
SPECIFICATIONS:
PUNCH CAPACITY:
Max Tonnage ………….. 86 Tons
Max Hole Size ………… 1-1/4” Thru 5/8″
Max Length Of Material … 20’
Min Length Of Material … 6’
SINGLE CUT SHEAR:
Max. Tonnage …………. 250 Tons
ANGLE:
Max …………………. 6” X 6” X 5/8”
Min …………………. 1-1/2” x 1-1/2” x 3/16”
Max Length Of Material … 20’
Min Length Of Material … 6’
FLAT BAR:
Max … 5/8” X 6”
Min … 1/4” X 1-1/2”
Max Length Of Material … 20’
Min Length Of Material … 6’
Material Positioning Speed … 0-375 FT/MIN
Positioning Accuracy ……… +/- 1/32”
Hydraulic Power Unit ……… 30 HP
Control………………….. Windows XP CNC …Control
EQUIPPED WITH:
Windows XP CNC Control
Single Cut Shear
Easy To Use Windows Interface With Networking Ability
Rugged Punch Unit
Single Cut Shear Design
Four Sided “Sharpen Able” Rotating Blade
OPTIONAL ACCESSORIES AVAILABLE: … P.O.R.:
Weld/Tack Station With Continuous Feed Eliminate Drop On Trailing End Of The Material
Punch Two Hole Sizes Per Leg
Single Wheel Measuring System
Dual Pinch Wheel Measuring System
Pulled X-Probe Measuring System
20’ Storage And Loading Conveyor
5’ Powered Out-Feed Conveyor & Work Surface
15’ “V-Style” Chain Driven Powered Out Feed & Dump Conveyor
Powered In-Feed Auxiliary Pinch Wheel
10’ “V-Style” Non-Powered Conveyor
COMMENTS: Mfg. In U.S.A.
