100 TON EDWARDS ... IRONWORKER
Click to enlarge
Home Ironworkers Ironworkers - New & Used 100 TON EDWARDS … IRONWORKER
110 TON EDWARDS ... IRONWORKER
110 TON EDWARDS ... IRONWORKER
Back to products

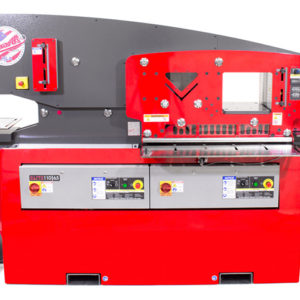

110/65 TON EDWARDS ... IRONWORKER
110/65 TON EDWARDS ... IRONWORKER

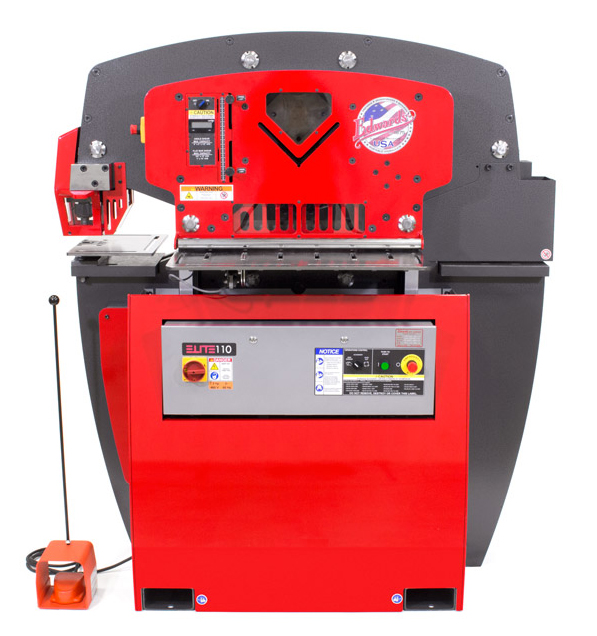

100 TON EDWARDS … IRONWORKER

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: Jaws IV … (4) Work Stations
Punch Capacity: 1-1/16” Hole Thru 1” Plate
Type: Hydraulic
Year: New

SPECIFICATIONS:

PUNCHING:
Max Tonnage…………… 100 Ton
Punch Capacity………… 1-1/16″ Dia thru 1″ Plate
Max. Stroke Length…….. 1-13/16″
Throat Depth………….. 11″

SHEARING:
Flat Bar (14″ Blade)…… 14″ x 3/4″
                           10″ x 1″
ANGLE SHEARING:
Angle Cutting @ 90 Degree. 6″ x 6″ x 1/2″
Round Bar…………….. Up to 1-1/4″ (Optional)
Square Bar……………. Up to 1-1/4″ (Optional)

COPER NOTCHER:
Coper Notcher…………. 2-1/2″ x 6″ x 1/2″(Optional)
Vee Notcher…………… 3″ x 3″ x 1/4″(Optional)

Motor Size……………. 7.5 HP – 220V – 3 Phs
Weight……………….. 4650 Lbs
Dimensions……………. 56-1/8″(l) x 45″(w) x 61-11/16″(h)

EQUIPPED WITH:

(4) Separate Work Stations:

Punching Station
Flat Bar Shear
Angle Shear
Open Tooling Station

Key Punch Ram
Punch Holder, Adaptor & Stripper
Pedestal Die Table (Up to 1-1/16″)
Electric Stroke Control
Movable Foot Pedal
Safety Guards

OPTIONAL ACCESSORIES:

440V – 3 Phs
220V – 1 Phs
Please Contact us for Complete List of Optional Accessories

COMMENTS:  Mfg. in U.S.A.

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL: IMCO at 614-914-5087

F.O.B.: Location

TERMS: Check w/Order

Prices subject to change without notice

SKU: 13569 Category: Ironworkers - New & Used
