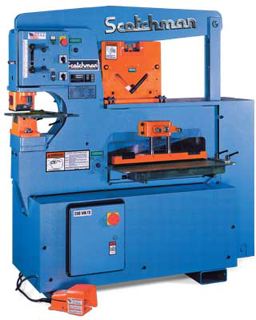

Model: 6509-24M … (3) Work Stations
Punch Capacity: 1-1/16” Hole Thru 3/4” Plate
Type: Hydraulic
Year: New
SPECIFICATIONS:
PUNCHING:
Max. Tonnage………. 65 Ton
Punch Capacity…….. 1-1/16” Hole Thru 3/4” Plate
Throat……………. 9″
BAR SHEAR:
Flat Max. Thickness… 4″ x 1”
Flat Max. Width……. 24” x 1/4”
ANGLE SHEAR:
Max. Size…………. 6′ x 6′ x 3/8″
Motor Size………… 5 HP – 220/440V – 3 Phs
Weight……………. 2985 Lbs
Dimensions………… 60″(l) x 24″(w) x 66″(h)
EQUIPPED WITH:
Round Punch & Die Max. 1-1/4” Diameter
Die Holders w/2″ Die Inserts
Punch Nut w/Wrench & Stripper
Universal Bolster for Punching of Flat Bar & Angle
Remote Foot Pedal
Punch Gauging Table w/Fence & Scale
Shear Table w/Miter Fence
24″ Flat Bar Shear w/(4) Way Reversible Blade
All Standard Safety Guards
MACHINE FEATURES:
(3) Separate Work Stations:
Punching
Flat Bar Shear
Open Stations Equipped w/Angle Shear
Punch Jog Control
Adjustable Electric Stroke Controls w/Scale
Keyed Punch Ram
Forklift Accommodation
Emergency Stop Button w/Lock & Tag Out
OPTIONAL ACCESSORIES AVAILABLE
5 HP – 220V – 1 Phs
Work Light
12″ Brake Attachment w/2″ Opening Bottom V-Die
12″ Brake Table w/Scale & Squaring Arm
24″ Brake Attachment w/2″ Opening Bottom V-Die
24″ Brake Attachment w/2″ Opening Bottom V-Die
Brake Length Gauge w/Scale
Pipe Notcher Housing
Punch Pusher for Pipe Notcher
Upper & Lower Sch. 40 Notching Dies (3/4″ – 2″ each)
90Ëš Vee Notcher
Rod Shear (1-1/4″ Rd or 1″ Sq)
Square Tube Shear (1/2″ – 2″ x 14 ga)
Fabrication 24″ Brake Package
24″ Brake Attachment
24″ Brake Table w/Scale & Squaring Arm
Brake Table Gauge w/Scale
COMMENTS: Mfg. In USA
