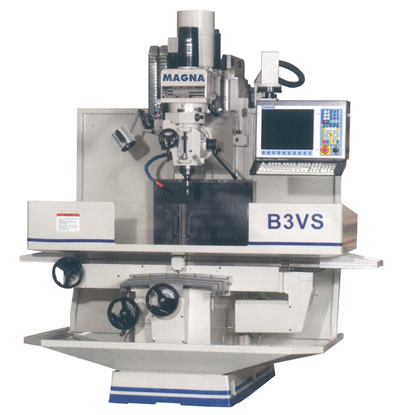

Model: B-3-VS … Centroid M-400-S Control
Type: CNC Bed Mill
Year: New
SPECIFICATIONS:
Table Size:…………… 12” x 60”
Table Travel………(X).. 41”
Table Travel………(Y).. 20”
Head Travel……….(Z).. 23”
Spindle Nose-Table Top:… 26”
Motor Size:…………… 5 HP – 220V – 3 Phs
Spindle Speeds(VS)…….. 60-5000 RPM
Spindle Taper:………… #40
Table Load Cap.:………. 2200 Lbs
Rapid Traverse:……….. 200 IPM
Weight:………………. 6500 Lbs
Dimensions……………. To be Advised
Control Type:…………. Centroid M-400-S
EQUIPPED WITH:
STANDARD EQUIPMENT:
Centroid M-400S CNC Control
Conversational
G-Code
15” Color Monitor
RS-232 & Ethernet Ports
(1) GB Solid State Hard Drive
Splash Guard
Power Draw Bar
Auto Lube System
Coolant System
Halogen Work Light
Metal Telescopic Way Covers
Manual Draw Bar
Leveling Bolts & Pads
Tool Box w/ Tools
MACHINE FEATURES
(3) Axis Simultanious Contouring
Spindle Speeds – (Programable)
Manual & Automatic Quill Feed
Head Swivels – 90 Degrees Left & Right
“Back Gear” For Heavy Cutting
Handwheels For Manual Use
Meehanite Casting
H & G “Box” Bed Ways (Turcite Coated) (Y & Z Axis)
Metal “Telescopic” Way Covers (3) Axis
(4) Box Ways
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
6” IMCO (Kurt Type) Vise
6” Precision Kurt Vise
(6) End Mill Adaptors (3/16“ – 1”)
4th Axis Pre-Wire
5.9” Rotary Table Package (Includes 4th Axis Pre-Wire)
7.8” Rotary Table Package (Includes 4th Axis Pre-Wire)
RTA (Rigid Tapping Adaptor) – Includes Software & Installation
(52) PC. Clamping Kit
Table Guard
7.5 HP to 10 HP (E-8-FC)
SOFTWARE OPTIONS (CENTROID CONTROL)
Drilling Cycles
Multiple Work Coordinate Systems
User Definable Macros & Sub Programs… Included
Compression Tapping
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software…………………. Included
Coordinate System Rotation
DXF in, CAD Drawing Input Software
Cutter Compensation……………….. Included
Intercon Off-Line Conversational Program (for Descktop PC)
Intercon Conversational Program (for CNC Control)
Engraving Software
DIGITIZING & PROBING
2D & 3D Digitizing Software (Includes Mold Majic Software)
DP-4 Probing Package
TT-1 Tool Touch Off Kit
ACCESSORY
(100) Step MPG
Installation & Set-Up
Control Training
COMMENTS: Control Mfg. In U.S.A.
