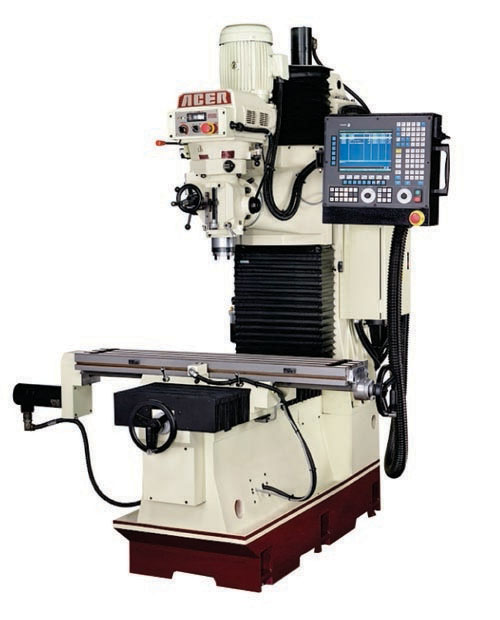

X=27.5" - Y=20" - Z=20.87" ACER ... CNC MILL
Click to enlarge
Home Milling Machines - New and Used CNC Mills New & Used X=27.5″ – Y=20″ – Z=20.87″ ACER … CNC MILL
6.5 CUBIC FEET MR. DEBURR ... VIBRATORY FINISHER
6.5 CUBIC FEET MR. DEBURR ... VIBRATORY FINISHER
Back to products
X=31.5" - Y=20" - Z=20.87" ACER ... CNC MILL
X=31.5" - Y=20" - Z=20.87" ACER ... CNC MILL

X=27.5″ – Y=20″ – Z=20.87″ ACER … CNC MILL

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: E-1050
Type:  CNC Bed Mill
Year: New



SPECIFICATIONS:



Table Size…………………….. 10” x 50”

Table Travel……………….(X).. 27.5”

Table Travel……………….(Y).. 20”

Head/Knee Travel……………(Z).. 20.87”

Spindle Nose To Table Top……….. 25.39”

Motor Size…………………….. 5 HP – 220V – 1 Or 3 Phs

Spindle Speeds Frequency Inverter… 50 – 3750

Spindle Taper………………….. Cat 40

Table Load Capacity…………….. 1320 Lbs

Rapid Traverse…………………. 200 IPM

Weight………………………… 4610 Lbs
Dimensions…………………….. To be Advised

Control Type…………………… Fagor 8055i CNC (3) Axis



EQUIPPED WITH:

Fagor 8055i CNC Control
Interactive ICON Based Conversational Programming System
One Screen – One Operation, Fill in the Blanks & Press Cycle to Start
Unlimited Programming
Built-In Mini CAD/CAM System
11” Color TFT LCD Screen
Canned Cycles in Conversational G Code
(3) 36 In/Lb AC Brushless Servo Motors & Drives
Flash Memory (1 MB Flash Ram / 512 MB CF) 2 GB Optional
USB Memory Port; Ethernet Optional
WinDNC (DXF Converter) & Engraving
Smart Z-Axis Quill for CNC & Manual Mode w/Scale-Feed DRO Feedback
Ball Screws, & Mounting Brakets for All Axis

MACHINE FEATURES

Frequency Inverter Drive
(3) Axis
Meehanite Casting
H & G Table
Turcite-B Coated Slideway & Gibs
Class 7 Precision Spindle Bearings

OPTIONAL ACCESSORIES:

Programmable RPM For (3) Axis
“Z” Axis Digital Readout
Manual Pulse Generator
Home Return Switch For Home & Fixture Offset
Power Draw Bar
Coolant System
Riser Block 4”/6”/8”
6” Precision Vise
Chip Pan & Splash Guard
(6) #40 Taper End Mill Holders
Upgrade to 440V – 3 Phs Motor

COMMENTS:



U.S.A.”  IMPORTER –  DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087



F.O.B.:  Location



TERMS:  Check w/Order



All prices subject to change without notice

SKU: 9585 Category: CNC Mills New & Used
