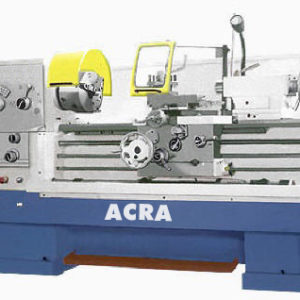

16" x 60" ACRA ... LATHE 2-1/32" SPINDLE HOLE
16" x 60" ACRA ... LATHE 2-1/32" SPINDLE HOLE
Back to products
X=46" - Y=22" - Z=23" MAGNA ... CNC MILL
X=46" - Y=22" - Z=23" MAGNA ... CNC MILL

X=38″ – Y=16-1/2″ – Z=16″ CEN-TRUMP … “CNC” MILL

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: 5-NC … Centroid M-400-i Control
Type: CNC Knee Mill
Year: New

SPECIFICATIONS:

Table Size:…………… 12” x 60”
Table Travel………(X).. 38”
Table Travel………(Y).. 16-1/2”
Quill Travel………(Z).. 5-1/2”
Knee Travel…………… 16-1/2″
Spindle Nose-Table Top:… 2-1/4” to 21-3/4″”
Motor Size:…………… 5 HP – 220V – 3 Phs
Spindle Speeds(VS)…….. 70 – 4000 RPM
Spindle Taper:………… # 40
Table Load Cap.:………. 1000 Lbs
Rapid Traverse:……….. Yes
Weight:………………. 3600 Lbs
Dimensions……………. To be Advised
Control Type:…………. Centroid M-400-i

EQUIPPED WITH:

Centroid M-400-i Control

“Conversational” (Shop Floor Programming)
“G” Code
15” Color Monitor
RS-232 & Ethernet Ports
(32) GB Solid

State Hard Drive
Hard Limit Switch
Draw Bar (Manual)
Automatic Lubrication
Coolant
MPG handWheel
Chip Tray
Table Guard (Optional)
Halogen Work Light
Way Covers
Tool Box w/Tools
Leveling Bolts

MACHINE FEATURES

(3) Axis Rigid Head
Variable Speed – (Programmable)
H & G w/Turcite … Box Ways
“Back Gear” For Heavy Cutting
Meehanite Casting
Precision Ball Screws
29 In/Lb Motor
Handles (X,Y & Knee)
Box Ways (Y Axis)
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty

OPTIONAL ACCESSORIES: (CNC Mill)

Power Draw Bar
Mist Coolant System
440V Transformer
6” – Vise w/Swivel Vise
6” – Kurt Precision Vise
(52) Clamping Kit
Table Guard
“Z” Axis Scale Feed Back for 3rd Axis Quill
6” Riser Block
(11) R-8 Collets

SOFTWARE OPTIONS (CENTROID CONTROL)

User Definable Macros & Sub Programs… Standard
Compression Tapping……………….. Standard
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software…………………. Standard
Coordinate System Rotation
DXF in, CAD Drawing Input Software
Cutter Compensation……………….. Standard
Intercon Off-Line Conversational Program (for Desktop PC)
Engraving Software

DIGITIZING & PROBING

2D & 3D Digitizing Software (Includes Mold Majic Software)
DP-4 Probing Package
TT-1 Tool Touch Off Kit

Toolroom Package:

D4-Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System

ACCESSORY

Installation & Set-Up… (Per Day)
Control Training…….. (Per Day)
NOTE:  Plus Travel Expense

COMMENTS:  CONTROL MFG. in U.S.A.

 “USA”  IMPORTER –  DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL: IMCO at 614-914-5087

F.O.B. Location

TERMS:  Check w/Order

All prices subject to change without notice



Video Shows 3VK-MR Model
