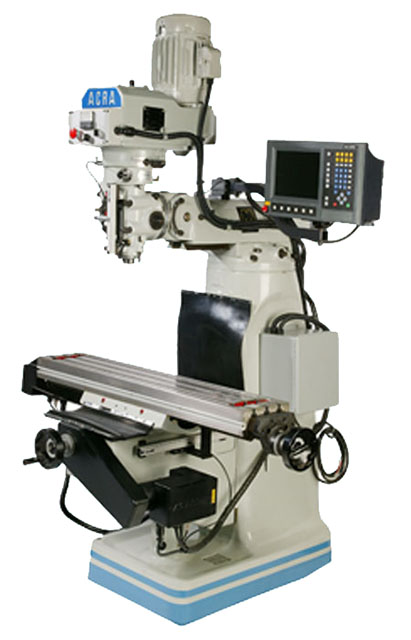

X=33″ – Y=12″ – Z=5″ ACRA … (3) AXIS CNC MILL

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: AM-2V-3
Type: “CNC” Knee Mill
Year: New

SPECIFICATIONS:

Table Size……………. 9” x 49”
Longitudinal Travel..(X).. 33”
Cross Travel………(Y).. 12”
Vertical Travel……(Z).. 5”
Spindle To Table………. 18-3/4”
Spindle Taper…………. R-8
Quill Diameter………… 3-3/8″
Spindle Speeds(VS)…….. 65 – 4200 RPM
Rapid Traverse………… 200/100 IPM
Motor Size – Voltage…… 3 HP – 220V – 3 Phs
Table Weight Capacity….. 500 Lbs
Weight……………….. 2460 Lbs
Dimensions……………. 54″(l) x 48″(w)

EQUIPPED WITH:

(3) Axis Acu-Rite MillPwr CNC Control
Color LCD
Manual Pulse Generator
Auto Lube
“X & Y” Scale
Remote Start/Stop

MACHINE FEATURES

Double Wall Construction
Meehanite Casting
Turcite on X & Y Axis
Hardened & Ground Ways
Hardened & Ground Table
Quill Heat Treat Hardened & Chromed

OPTIONAL ACCESSORIES: P.O.R.

(5) Piece Collet Set (1/4″ – 3/4″)
6″ Vise – Kurt Type
Automatic Draw Bar – Installed
Mitutoyo Quill “LCD” Readout – Installed
“W” Axis Scale on Knee
AC Inverted Spindle
Single Phase (Not AC)
440/480V (AC Only)

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject change without notice



SKU: 13989 Category: CNC Mills New & Used
