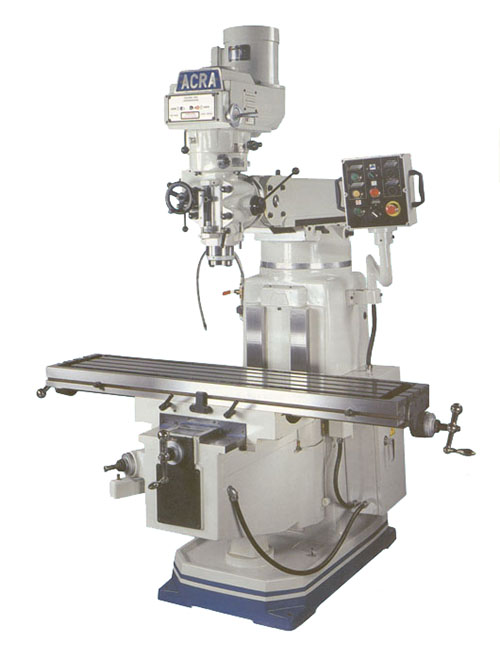

X=38"-Y=17"-Z=16" ACRA ... VERTICAL MILL
Click to enlarge
Home Milling Machines - New and Used Bridgeport Type Mills New & Used X=38″-Y=17″-Z=16″ ACRA … VERTICAL MILL
16" x 60" LeBLOND ... LATHE 2.1" SPINDLE HOLE
16" x 60" LeBLOND ... LATHE 2.1" SPINDLE HOLE
Back to products
X=36" - Y=12.5" - Z=16" ACRA ... VERTICAL MILL
X=36" - Y=12.5" - Z=16" ACRA ... VERTICAL MILL

X=38″-Y=17″-Z=16″ ACRA … VERTICAL MILL

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: 5-V
Type:  Variable Speed
Year: New

SPECIFICATIONS:

Table Size……………. 12-1/2” x 58”
Longitudinal Travel..(X).. 38”
Cross Travel………(Y).. 17”
Vertical Travel……(Z).. 16”
Quill_Head_Travel……… 5”
Dist. Spindle to Table…. 21”
Spindle Taper…………. #40
Spindle Speeds (VS)……. 50 – 3750 RPM
Motor Size – Voltage…… 5 HP – 220/440V – 3 Phs
Table Weight Capacity….. 990 Lbs
Weight……………….. 3960 Lbs
Dimensions……………. 82-1/2″(l) x 58-1/2″(w)

EQUIPPED WITH

Coolant System
Chip Tray
Halogen Work Light
Draw Bar
Back & Front Way Covers
Leveling Bolts & Plates
Auto Lube
Tool Box w/Tools
Operation Manual

MACHINE FEATURES

Variable Speed
Square Box Ways
Meehanite Casting
Hardened & Ground on X & Y Slideway
Hardened & Ground Table
Hardened & Ground Bed Ways Turcite Coaded
Spindle Supported by Class 7 Bearings
Back Gear for Heavy Cutting
(2) Way Tilt Head
NOTE:  90 Degree Left & Right
Power Elevation to Knee
Precision Lead Screw
Hard Chrome Quill

OPTIONAL EQUIPMENT:

Newall DRO “DP-700″…(2 Axis)
Installation of DRO…(2 Axis)
NEWALL DRO “DP-700″…(3 Axis)
Installation of DRO…(3 Axis)
(6) Piece End Mill Adaptor Set (3/16″-1”)
Table Power Feed – “VS” (X)
Table Power Feed – “VS” (Y)
Automatic Draw Bar
(52) Piece Clamp Set
Right Angle Attachment
6″ Riser Block
8″ Riser Block
6″ Kurt  Precision Vise
6″ Vise-Kurt Type w/Swivel Base
Mitutoyo Quill “LCD” Readout

“USA”  IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 12978 Category: Bridgeport Type Mills New & Used
