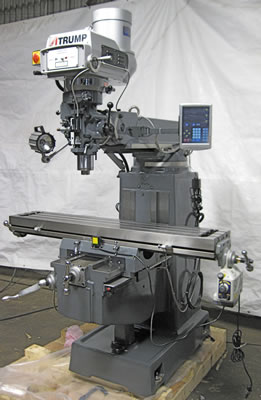

X=36" - Y=15.75" - Z=16" TRUMP ... VERTICAL MILL (EVS)
Click to enlarge
HomeMilling Machines - New and UsedBridgeport Type Mills New & Used X=36″ – Y=15.75″ – Z=16″ TRUMP … VERTICAL MILL (EVS)
Previous product
X=35" - Y=12" - Z=16" MAGNA ... VERTICAL MILL (VS)
X=35" - Y=12" - Z=16" MAGNA ... VERTICAL MILL (VS)
Back to products
Next product
400 TON x 12' STANDARD ... PRESS BRAKE
400 TON x 12' STANDARD ... PRESS BRAKE

X=36″ – Y=15.75″ – Z=16″ TRUMP … VERTICAL MILL (EVS)

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description







Model: 3-VHG-EVS … Electronic Variable Speed
Type: Knee Mill
Year: New

SPECIFICATIONS:

Table Size…………….. 10” X 54″
Longitudinal Travel…(X).. 36″
Cross Travel……….(Y).. 15-3/4″
Vertical Travel…….(Z).. 16″
Quill Travel…………… 5″
Dist Spindle to Table…… 3/4″ – 16-3/4″
Spindle Taper………….. R-8
Spindle Speeds (EVS)……. 60 – 5000 RPM
Table Weight Capacity…… 700 Lbs
Motor Size-Voltage……… 3 HP  -220/440V – 3 Phs
Weight………………… 2900 Lbs
Dimensions…………….. 102″L x 77″W x 84″H

EQUIPPED WITH:

“Electronic” Variable Speed Head
Halogen Work Light
Manual Draw Bar
Back & Front Way Covers
One Shot Lube
R-8 Collet Holder
Operation Manual
Tool Box w/Tools

MACHINE FEATURES:

Meehanite Casting
H & G on X & Y Bed Ways and Table
Turcite Coating on X & Y Bed Ways
Square Way on Y & Z Axis Bed Ways
Spindle Supported by Class 7 Bearings (0.0002″ Runout)
“Back” Gear for Heavy Cutting
(4) Way Tilt Head

90 Degree Left & Right
45 Degree Front & Back

Hard Chrome Quill

OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.)​

(2) Axis Newall Digital Readout
(3) Axis Newall Digital Readout
(52) pc Clamp Set
Right Angle Attanchment
6″ Riser Block
8″ Riser Block
(11) pc Collet Set
Table Power Feed (X)
Table Power Feed (Y)
Table Power Feed (Z)
6”  Kurt Precision Vise
6” Vise – Kurt Type w/Swivel Base
Automatic Draw Bar
Mitutoyo Quill “LCD” Readout
Phase Converter 3 Phs to 1 Phs

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice







SKU: 8186 Category: Bridgeport Type Mills New & Used
