Model: AM-2-V
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size…………….. 9” x 49”
Longitudinal Travel.. (X).. 36”
Cross Travel……….(Y).. 12.5”
Vertical Travel…….(Z).. 16”
Quill Diameter…………. 3-3/8″
Quill Travel…………… 5”
Dist. Spindle To Table….. 18”
Spindle Taper………….. R-8 or #30
Spindle Speeds (V.S.)…… 65 – 4200 RPM
Motor…………………. 3 HP – 220/440V – 3 Phs
Table Weight Capacity…… 650 Lbs
Weight………………… 2200 Lbs
Dimensions…………….. 54″L x 48″W
EQUIPPED WITH:
(4) Way Tilt Head
“Back Gear” for Heavy Cutting
Back & Front Way Covers
One Shot Lube
Draw Bar
Operation Manual
Tool Box
MACHINE FEATURES:
Meehanite Casting
Quill Power Feed
H & G Table
H & G Dovetail ways
Hard Chrome Quill
Reversing Switch
OPTIONAL ACCESSORIES:
(2) Axis NEWALL Digital Readout “DP-700”
Table Power Feed “VS” (X) Axis
Table Power Feed “VS” (Y) Axis
6″ Vise – Kurt Type
6″ Kurt Precision Vise
(5) Piece Collet Set (1/4″ – 3/4″)
Coolant & Chip Tray
Automatic Draw Bar
Auto Lube
Mitutoyo Quill “LCD” Readout

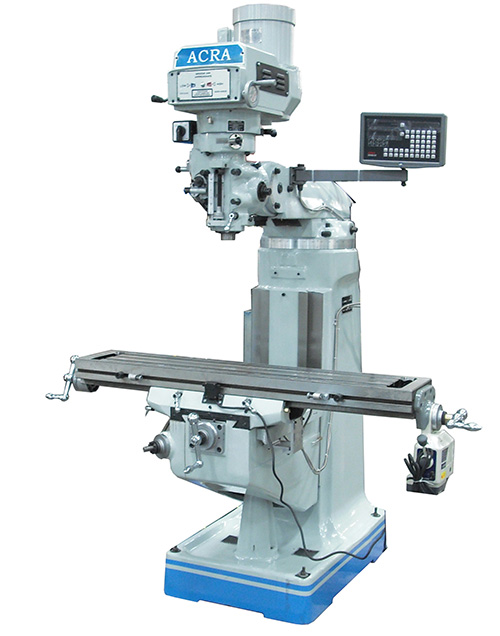

NOTE: Photo shown with Optional “X” Axis Power Feed & Digital Readout
