14" x 40" LeBLOND ... LATHE 2.1" SPINDLE HOLE
Click to enlarge
Home Lathes New and Used Lathes - Conventional 14″ x 40″ LeBLOND … LATHE 2.1″ SPINDLE HOLE
X=36" - Y=12.5" - Z=16" ACRA ... VERTICAL MILL
X=36" - Y=12.5" - Z=16" ACRA ... VERTICAL MILL
Back to products
14" x 60" LeBLOND ... LATHE 2.1" SPINDLE HOLE
14" x 60" LeBLOND ... LATHE 2.1" SPINDLE HOLE

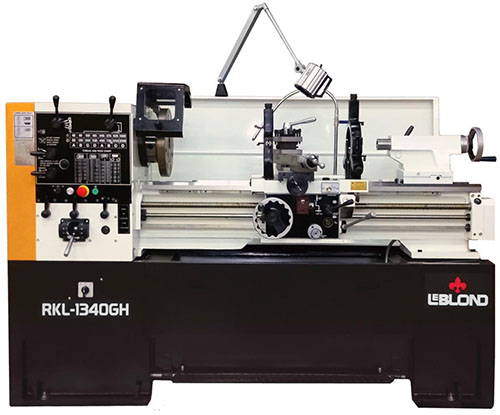

14″ x 40″ LeBLOND … LATHE 2.1″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: RKL-1300GH
Type:  Geared Head Lathe
Year: New

SPECIFICATIONS:

Swing Over Bed……….. 14.2”
Swing Over Cross Slide… 8.4”
Swing in Gap…………. 21”
Dist Between Centers….. 40”
Spindle Nose…………. D1-6
Spindle Hole…………. 2.1”
Bed Width……………. 10.3”
Spindle Speeds (16)…… 40 – 2000 RPM
Threading……………. Inch/Metric
Motor Size…………… 5 HP – 220V – 3 Phs
Tailstock Taper………. #4 MT
Gross Weight…………. 3200 Lbs
Dimensions…………… 95″(l) x 46″(w) x 70″(h)

EQUIPPED WITH:

(4) Way Toolpost
6″ Steady Rest w/Roller Jaws
3.5” Follow Rest w/Bronze Jaws
12″ Face Plate
Telescopic Taper Attachment
Full Length Splash Guard
Chuck Guard
Coolant System
Chip Pan
Brake Pedal
Halogen Work Light
Leveling Pads
Tool Box w/Tools
Operation & Parts Manual

MACHINE FEATURES

2.1″ Spindle Hole
H & G Gears & Bed Ways
Gap Bed
Spindle Supported by (3) Tapered Roller Bearings
Meehanite Casting Bed
Precision Ground Bed

OPTIONAL ACCESSORIES:

8″ – 3 Jaw “Set Tru” Bison Chuck
8″ – 6 Jaw “Set Tru” Bison Chuck
Taper Turning Attachment
Lever Collet Attachment
5C Collet Set (1/8″ – 1-1/8″ x 1/16″)
“Aloris Type” Quick Change Toolpost w/(5) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0″ – 1/2″ Capacity)
#4 MT Live Center
Newall Digital Readout

COMMENTS:

Need a Part?
Have a Techicnial Question?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS: Check w/Order

All prices subject to change without notice

SKU: 12988 Category: Lathes - Conventional
