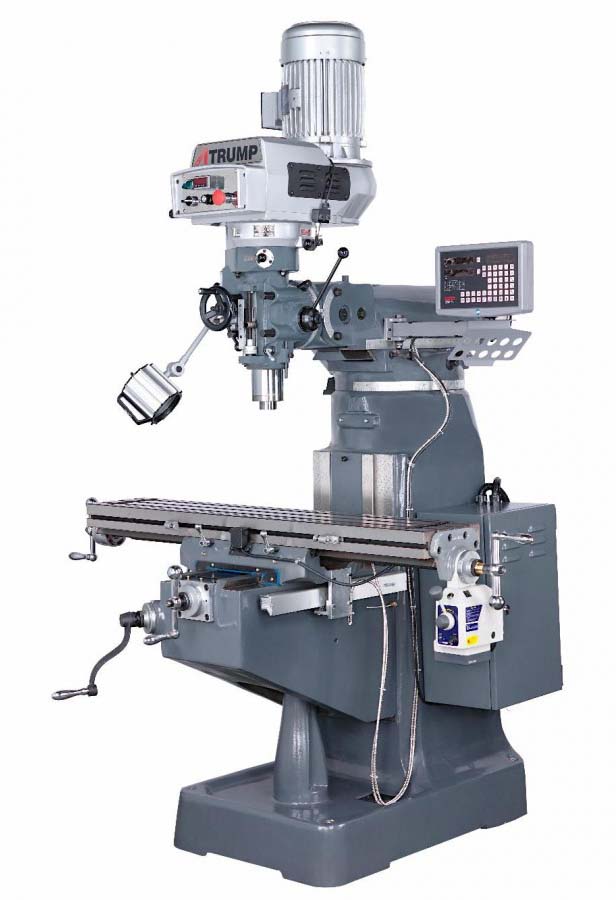

Model: 2-EV… Electronic Variable Speed
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size…………….. 9” X 49”
Longitudinal Travel ..(X).. 36”
Cross Travel……….(Y).. 12”
Vertical Travel…….(Z).. 16”
Quill Travel…………… 5”
Dist Spindle to Table…… 3-1/4″ – 16-3/4″
Spindle Taper………….. R-8
Spindle Speeds(EVS)…….. 70 – 5000 RPM
Table Weight Capacity…… 600 Lbs
Motor Size-Voltage……… 3 HP – 220V – 3 Phs
Weight………………… 2600 Lbs
Dimensions…………….. 102″L x 70″ x 82″
EQUIPPED WITH:
“Electronic” Variable Speed Head
Halogen Work Light
Manual Draw Bar
Back & Front Way Covers
One Shot Lube
R-8 Collet Holder
Operation Manual
Tool Box w/Tools
MACHINE FEATURES:
Meehanite Casting
H & G on X & Y Bed Ways and Table
Turcite Coating on X & Y Bed Ways
Square Way on Y & Z Axis Bed Ways
Spindle Supported by Class 7 Bearings (0.0002″ Runout)
“Back” Gear for Heavy Cutting
(4) Way Tilt Head
90 Degree Left & Right
45 Degree Front & Back
Hard Chrome Quill
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.)​
(2) Axis Newall Digital Readout
(3) Axis Newall Digital Readout
(52) pc Clamp Set
Right Angle Attanchment
6″ Riser Block
8″ Riser Block
(11) pc Collet Set
Table Power Feed (X)
Table Power Feed (Y)
Table Power Feed (Z)
Automatic Draw Bar
6” Kurt Precision Vise
6” Vise – Kurt Type W/Swivel Base
Automatic Draw Bar
Mitutoyo Quill “LCD” Readout
Phase Converter 3 Phs to 1 Phs
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
