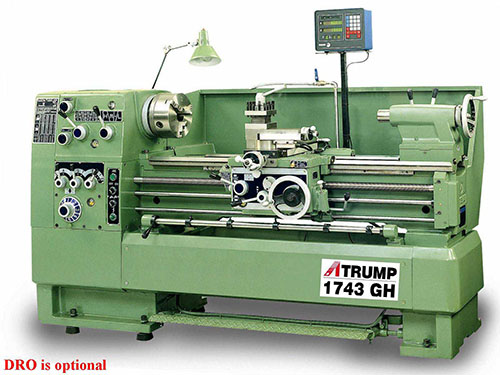

Model: GH
Type: Precision Gear Head Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 17”
Swing Over Cross Slide… 10-1/2”
Swing in Gap…………. 24”
Dist Between Centers….. 42”
Spindle Nose…………. D1-6
Spindle Hole…………. 2-1/4”
Bed Width……………. 11.8”
Spindle Speeds (12)…… 35 – 20-00 RPM
Threading……………. Inch Metric
Motor Size…………… 7.5 HP – 220/240V – 3 Phs
Tailstock Taper………. #4 MT
Gross Weight…………. 3500 Lbs
Shipping Dimensions…… 91”(l) x 40”(w) x 56”(h)
EQUIPPED WITH:
STANDARD EQUIPMENT:
8”-3 Jaw Chuck
(4) Way Tool Post
Coolant System
Follow Rest
Rear Splash Guard
Foot Brake
Steady Rest
Tools & Tool Box
Tail Stock
Operation Manual
MACHINE FEATURE:
2-1/4” Spindle Hole
Gap Bed Design
H & G Head Stock Gears
H & G Cross Feed Screw
H & G Bed Ways
Meehanite Casting
Inch/Metric Threading w/Dual Scales
Main Spindle Equipped w/ (3) Precision Taper Roller Bearings
OPTIONAL ACCESSORIES:
10” – 3 Jaw Chuck
10” – 4 Jaw Chuck
12” 4 Jaw Chuck
14” Face Plate
Taper Turning Attachment
Quick Change Tool Post w/ Holders
Work Light
(2) Axis Newall Digital Readout – Installed
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Techinical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
