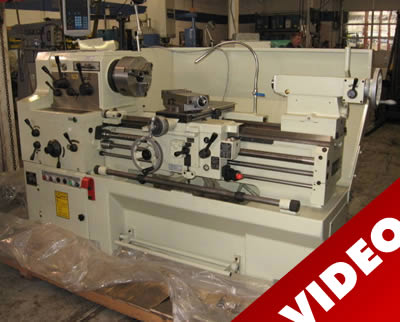

19" x 60" CADILLAC ... LATHE 2-9/32" SPINDLE HOLE
Click to enlarge
Home Lathes New and Used Lathes - Conventional 19″ x 60″ CADILLAC … LATHE 2-9/32″ SPINDLE HOLE
.626 Thur .750  GAGE PINS
.626 Thur .750 GAGE PINS
Back to products
22" x 60" CADILLAC ... LATHE 2-9/32" SPINDLE HOLE
22" x 60" CADILLAC ... LATHE 2-9/32" SPINDLE HOLE

19″ x 60″ CADILLAC … LATHE 2-9/32″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: W-480
Type: Tool Room Lathe
Year: New

SPECIFICATIONS:

Headstock……………. Geared Head
Swing Over Bed……….. 19”
Swing Over Cross Slide… 12”
Swing In Gap…………. 28”
Dist. Between Centers…. 60”
Spindle Nose…………. D1-6
Spindle Hole…………. 2-9/32”
Bed Width……………. 13-3/4”
Spindle Speeds(12)……. 32 – 1800 RPM
Threading……………. Inch/Metric
Motor Size…………… 7-1/2 HP – 220/440V – 3 Phs
Tailstock Taper………. #4 MT
Weight………………. 5200 Lbs

EQUIPPED WITH:

Inch/Metric Thread Dial
Follow Rest
6” Steady Rest
18” Face Plate
Follow Rest
6” Drive Plate
(2) Dead Centers
(1) Position “Auto Feed” Kick-Out
Splash Guard
Coolant System
Leveling Blocks
Operation & Parts Manual

MACHINE FEATURES:

Meehanite Base, Bed & Castings
H & G Bedways
Foot Brake
Turcite Slideways
Auto Lubrication
Micro Carriage Stop
(2) Speed Tailstock

“OPTIONAL  ACCESSORIES”  AVAILABLE … (P.O.R.)

8″ – 3 Jaw Chuck
10″ – 3 Jaw Chuck
12” – 3 Jaw Chuck
16” – 3 Jaw Chuck
10″ – 4 Jaw Chuck
12″ – 4 Jaw Chuck
16” – 4 Jaw Chuck
Square Turret Toolpost
Aloris Type Quick Change Toolpost w/(5) Holders
Lever Collet Attachment
Follow Rest
Micro Carriage Stop
Taper Attachment
(2) Axis Newall Digital Readout

COMMENTS:  Mfg. In Taiwan

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

    Need a Part ?
​    Have a Technical Question ?

CALL: IMCO at 614-914-5087

TERMS: Check w/Order

F.O.B.: Location

All prices subject to change without notice







SKU: 6032 Category: Lathes - Conventional
