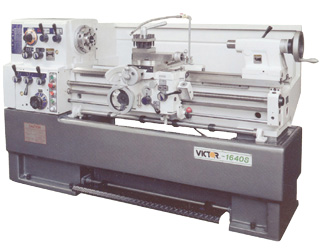

Model: 1600 “S” … Geared Head
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed:……….. 16”
Swing Over Cross Slide:… 9-7/16”
Swing In Gap:…………. 23-7/16”
Dist. Between Centers:…. 40” – 60”
Spindle Nose:…………. D1-6
Spindle Hole:…………. 2-1/32”
Bed Width:……………. 11-3/4”
Spindle Speeds:(12)……. 30 – 2000 RPM
Threading:……………. Inch / Metric
Motor Size:…………… 7-1/2 HP – 220/440V – 3 Phs
Tailstock Taper:………. # 4 MT
Weight:………………. 4290 – 4950 Lbs
Dimensions……………. To be Advised
EQUIPPED WITH:
8” – 3 Jaw Chuck
14” Face Plate
(4) Way Tool Post
Steady Rest
Follow Rest
Foot Brake
Coolant System
Splash Guard
Chip Tray
Thread Dial
H & G Head Stock Gears
H & G Bed Ways
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.)
8”-3 Jaw “Zero Set”Chuck W/Back Plate
10”-3 Jaw Chuck
10”-3 Jaw “Zero Set” Chuck w/Back Plate
12”-3 Jaw Chuck
10”-4 Jaw Chuck
12”-4 Jaw Chuck
Taper Turning Attachment
5C Lever Type Collet Closer
(15) Pcs. 5C Collet Set
#4 Mt Live Center
Micro Carriage Stop
(4) Position Carriage Stop
Chuck Cover
(2) Axis Newall Digital Readout – Installed
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
