16" x 40" CUTMASTER ... LATHE 2-1/16" SPINDLE HOLE
Click to enlarge
HomeLathes New and UsedLathes - Conventional 16″ x 40″ CUTMASTER … LATHE 2-1/16″ SPINDLE HOLE
Previous product
14" x 40" CUTMASTER ... LATHE1-9/16" SPINDLE HOLE
14" x 40" CUTMASTER ... LATHE1-9/16" SPINDLE HOLE
Back to products
Next product

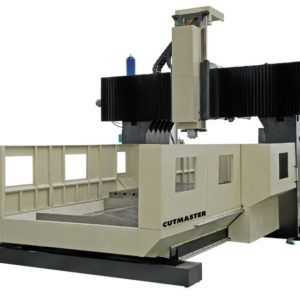

X=118" - Y=98" - Z=39" CUTMASTER ... DOUBLE COLUMN BRIDGE MILL.
X=118" - Y=98" - Z=39" CUTMASTER ... DOUBLE COLUMN BRIDGE MILL.

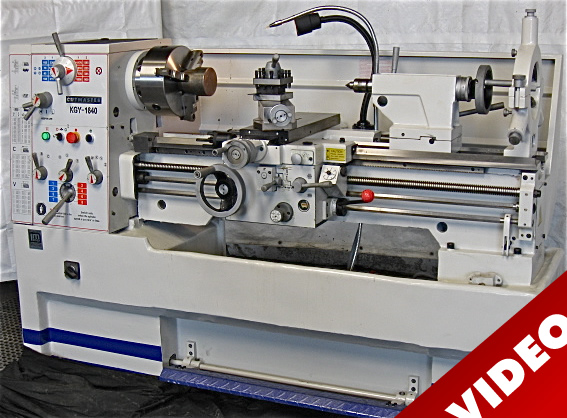

16″ x 40″ CUTMASTER … LATHE 2-1/16″ SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: KGY / MGL … Geared Head
Type: Engine Lathe
Year: New

SPECIFICATIONS:

Headstock…………….. Geared Head
Swing Over Bed:……….. 16”
Swing Over Cross Slide:… 10-1/4”
Swing In Gap:…………. 23-1/4”
Dist. Between Centers:…. 40”
Spindle Nose:…………. D1-6
Spindle Hole:…………. 2-1/16”
Bed Width:……………. 10”
Spindle Speeds:(16)……. 45 – 1800 RPM
Threading:……………. Inch/Metric
Motor Size:…………… 6 HP – 220V – 3 Phs
Tailstock Taper:………. #4 MT
Weight:………………. 4150 Lbs
Dimensions (LxWxH)…….. 79″(l) x 38″(w) x 56″(h)

EQUIPPED WITH:

8” – 3 Jaw Chuck
10” – 4 Jaw Chuck
Cast Iron Base
(4) Way Tool Post
Coolat System
Splash Guard
Chip Tray
2″ Follow Rest
Foot Brake
Thread Dial
12″ Face Plate
5-1/8″ Steady Rest (Roller Type)
Leveling Pads
Carriage Auto Kick-Out (4) Position
Work Light
Tools & Tool Box
Operations Manual

MACHINE FEATURES:

ISO 9001 “Certified”
2-1/16″ Spindle Hole
Gap Bed Design
H & G Headstock Gears
H & G Bedways
Main Spindle equipped w/(2) Precision Bearings
Jog Button … Emergency Stop

OPTIONAL ACCESSORIES AVAILABLE:  P.O.R.

8” – 3 Jaw “Set Tru” Chuck
8” – 6 Jaw “Set Tru” Chuck
Taper Turning Attachment
Lever Collet Attachment … (Installed)
5C  Set (1/8” – 1-1/8” x 1/16”)
Aloris Type Quick Change Tool Post w/(5) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor
#4 MT Live Center
Sino Digital Readout … (Installed)
Newall Digital Readout … (Installed)

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice





SKU: 9441 Category: Lathes - Conventional
