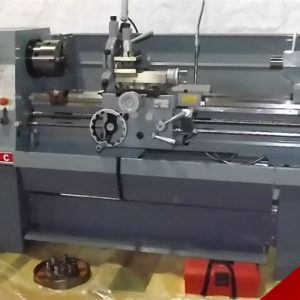

22″ x 120″ CUTMASTER … LATHE 4-1/16″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: ACH
Type:  Precision Lathe
Year: New


SPECIFICATIONS:

Headstock……………. Geared Head
Swing Over Bed……….. 22”
Swing Over Cross Slide… 13″
Swing In Gap…………. 30-7/8”
Dist. Between Centers…. 120”
Spindle Nose…………. D1-8
Spindle Hole…………. 4-1/16”
Bed Width……………. 16”
Spindle Speeds(12)……. 13 – 1200 Rpm
Threading……………. Inch/Metric
Motor Size…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 Mt
Weight………………. 7500 Lbs
Dimensions………………. To be Advise

EQUIPPED WITH:

15” – 3 Jaw Chuck
Splash Guard (Full Length)
(4) Way Toolpost
(1.6″ – 10″) Steady Rest
Coolant System
Haologen Work Light

MACHINE FEATURES:

4-1/16″ Spindle Hole
Cast Iron Bed
30″ Swing in Gap
(4) Way Rapid Traverse
H & G Headstock & Gears
H & G Bedways
Inch-Metric Gearbox
Precision Spindle Bearings
(2) Speed Tailstock
Crriage Automatic “Kick-Out” Stops

OPTIONAL ACCESSORIES AVAILABLE: P.O.R.

16” – 4 Jaw Chuck (4.13” H)
20” – 4 Jaw Chuck (4.175” H)
Chuck Guard
Turret Carriage Stop
#5 Live Center
20″ Follow Rest
Taper Attachment (Installed)
(7-12” – 15”) Steady Rest (Roller Type)
Quick Change Tool Post w/Holders
Newall Digital Readout (Installed)

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.  Location

TERMS:  Check w/Order

All prices subject to change without notice
