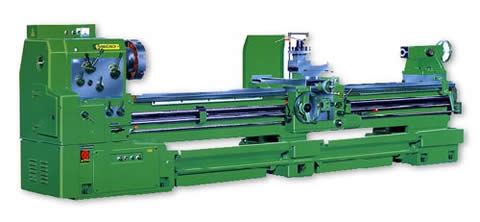

Model: HL-720
Type: Geared Head
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 28”
Swing Over Cross Slide… 18”
Swing in Gap…………. 34”
Dist. Between Centers…. 120”
Spindle Nose…………. D1-8
Spindle Hole…………. 3-1/32”
Bed Width……………. 18”
Spindle Speeds (12)…… 27 – 1205 RPM
Threading……………. Inch/Metric
Motor Size…………… 15 HP – 220/240V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 10,500 Lbs
Floor Space………….. 179″L X 47″W
EQUIPPED WITH:
22″ Face Plate
Coolant System
Thread Dial
Metric Gears
Tool Box
Work Lamp
Foot Brake
MACHINE FEATURES
Mori Seiki Design & Quality
3-1/32″ Spindle Hole
Spindle Supported at (3) Points by Precision Bearings
Automatic Forced Lubrication to all Slide Ways
Double Wall & Ribbed Bed Ways
H & G Bed Ways & Headstock Gears
Full Length Bed Casting
Hydraulic Disc Foot Brake
Carriage Feed Kick Out Bar
Cross Feed Screw – Runs in Grease Bath
Reverse Feed from the Apron
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
12” – 3 Jaw “Set Tru” Chuck
12” – 3 Jaw “Steel” Chuck
16” – 3 Jaw “Set Tru” Chuck
16” – 3 Jaw “Steel” Chuck
16” – 4 Jaw “Steel” Chuck
20” – 4 Jaw “Steel” Chuck
Quick Change Toolpost w/(5) Holders
Rear Toolpost
(11” – 17”) Steady Rest
Follow Rest
Taper Attachment
#5 MT Live Center
(2) Axis Newall Digital Readout
