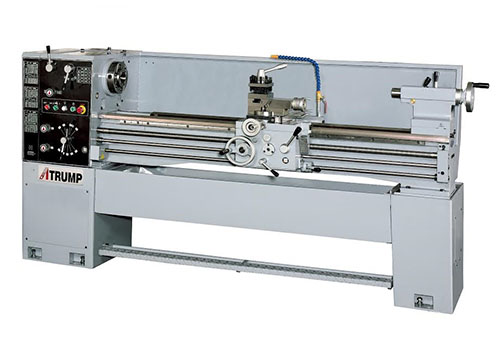

Model: LD
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 16”
Swing Over Cross Slide… 9-1/2”
Swing in Gap…………. 21-3/4”
Dist Between Centers….. 60”
Spindle Nose…………. D1-5
Spindle Hole…………. 2-3/16”
Bed Width……………. 10”
Spindle Speeds(12)……. 50 – 2000 RPM
Threading……………. Inch Metric
Motor Size…………… 5 HP – 220/440V – 3 Phs
Tailstock Taper………. #4 MT
Gross Weight…………. 1900 Lbs
Shipping Dimensions…… 82”(l) x 34”(w) x 60”(h)
EQUIPPED WITH:
STANDARD EQUIPMENT
6” – 3 Jaw Chuck
10” – 4 Jaw Chuck
(4) Way Tool Post
Coolant System
Rear Splash Guard
Tail Stock
10” Face Plate
One Shot Lube
Foot Brake
Follow Rest
#3 MT Dead Center
Tools & Tool Box
4-1/2” Steady Rest
Operation Manual
MACHINE FEATURES
2-3/16” Spindle Hole
Gap Bed Design
H & G Head Stock Gears
H & G Cross Feed Screw
H & G Bed Ways
Inch/Metric Threading w/Dual Scales
Built-in Safety Overload Clutch
Main Spindle Equipped w/(2) Precision Taper Roller Bearings
OPTIONAL ACCESSORIES:
8” – 3 Jaw “Set Tru” Chuck
8” – 6 Jaw “Set Tru” Chuck
Chuck Guard
Quick Change Tool Post w/4 Holders
Taper Turning Attachment
14” Face Plate
Work Light
Single Saddle Stop
(4) Position Saddle Stop
(2) Axis Newall Digital Readout – Installed
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
