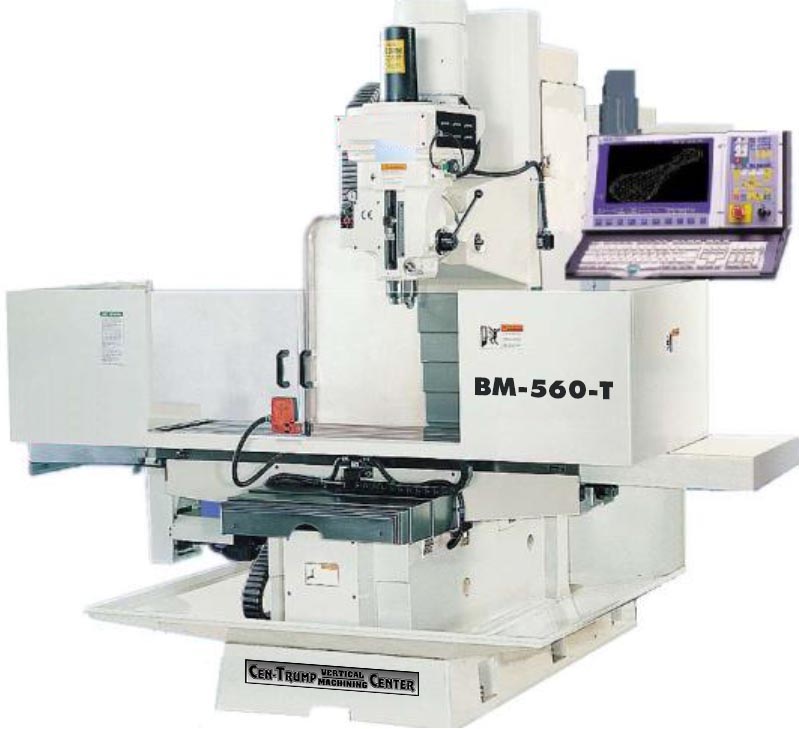

Model: BM-560-T
Type: CNC Bed Mill
Year: New
SPECIFICATIONS:
Table Size………………… 16.5” x 63”
Table Travel…………..(X).. 51”
Table Travel…………..(Y).. 24.5”
Head Travel……………(Z).. 24”
Quill Travel………………. 6″
Spindle Nose To Table Top…… 30”
Motor Size………………… 10 HP – 220V – Phs
Spindle Speeds(Programmable)… 60 – 4000 RPM
Spindle Taper……………… #40
Table Load Capacity………… 2000 Lbs
Rapid Traverse…………….. 250 IPM
Weight……………………. 8360 Lbs
Dimensions………………… To be Advised
Control Type………………. Centroid M-400
EQUIPPED WITH:
STANDARD EQUIPMENT:
(3) Axis
Centroid M-400 Control
Conversational (Shop Floor Programming)
“G” Code
15” Color Monitor
RS-232 & Ethernet Ports
(1) GB Solid State Hard Drive
Auto Lube
Coolant System
Halogen Work Light
Splash Guard
Leveling Bolts & Pads
Tool Box w/Tools
MACHINE FEATURES:
(3) Axis
Spindle Speeds (Programmable)
H & G Box Ways (Y & Z Axis)
(4) Box ways
Bed Ways – Turcite Coating
Meehanite Casting
“Double Nut” – Precision Ball Screws
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
”CNC Mill:
Power Draw Bar
6” IMCO (Kurt Type) Vise
6” Precision Kurt Vise
(6) End Mill Adaptors (3/16” – 1”)
(52) PC. Clamping Kit
Table Guard
10” Riser Block (Engine Block Job Shop)
28 KVA Transformer (440/480V) (Model 560)
(16) Automatic Tool Changer
Mist Coolant System
Table Guard
Full Enclosure (560 Model)
SOFTWARE OPTIONS (CENTROID CONTROL):
Drilling Cycles… Standard
Rigid Tapping
Multiple Work Coordinate System
User Definable Macros .& Sub Programs… Standard
Compression Tapping………………… Standard
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software………………….. Standard
Coordinate System Rotation
DXF In, CAD Drawing Input Software
Cutter Compensation………………… Standard
Intercon Off-Line Conversational Program (For Desktop PC)
Engraving Software
DIGITIZING & PROBING:
2D & 3D Digitizing Software (Includes Mold Magic Software)
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Tool Room Package:
D4 Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
ACCESSORY:
(100) Step MPG Hand Wheel
Installation & Set-Up … (Per Day)
Control Training … (Per Day)
Plus Travel Expenses
COMMENTS: Control Mfg. In U.S.A.
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All prices subject to change without notice
