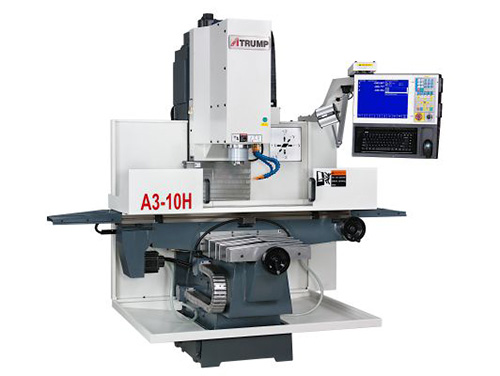

Model: A3-10H
Type: CNC Bed Mill
Year: New
SPECIFICATIONS:
Table Size……………… 13” x 60”
Table Travel………..(X).. 39.9”
Table Travel………..(Y).. 19.9”
Head Travel…………(Z).. 19.6”
Spindle Nose To Table Top… 3.9” – 24.4”
Motor Size……………… 10 HP – 220V – 3 Phs
Spindle Speeds………….. 8000 RPM
Spindle Taper…………… #40
Table Load Capacity……… 1100 Lbs
Rapid Traverse………….. Yes
Weight…………………. 4600 Lbs
Dimensions……………… To be Advised
Control Type……………. Centroid M-400i
EQUIPPED WITH:
Centroid M-400i CNC Control
“Conversational” (Shop Floor Programming)
“G” Code
15” Color Monitor
RS-232 & Ethernet Ports
(60) GB Solid State Hard Drive
Auto Lube
Coolant System
Halogen Work Light
Splash Guard
Leveling Bolts & Pads
Tool Box w/Tools
MACHINE FEATURES
(3) Axis
Spindle Speeds – (Programable)
Telescopic Way Cover On Rear (Y & Z)
Dovetail Way On “X”
H & G Turcite Coating Guide Way
Meehanite Casting
“Double Nut” – Precision Ball Screws
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
OPTIONAL ACCESSORIES: (CNC MILL)
(16) Automatic Tool Changer (Umbrella w/Software)
6” IMCO (Kurt Type) Vise
6” Precision Kurt Vise
(52) PC. Clamping Kit
Mist Coolant System
Full Enclosure
Upgrade To Telescopic Metal Way Covers “Y & Z”
SOFTWARE OPTIONS (CENTROID CONTROL)
User Definable Macros & Sub Programs
Compression Tapping
Scaling & Mirroring
Rigid Tapping
Unlimited Part Program Size
4th Axis Software
Coordinate System Rotation
DFX In, CAD Drawing Input Software
Cutter Compensation
Intercon Off-Line Conversational Program (For Desktop PC)
BCD Tool Change Output
100 Step MPG Hand Wheel
DIGITIZING & PROBING
2D & 3D Digitizing Software (Includes Mold Magic Software)
DP-4 Probing Package
DP-7 Probing Package
TT-1 Tool Touch Off Kit
Toolroom Package
D-4 Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
ACCESSORY OPTIONS:
Installation
Set-up/Control Training
COMMENTS:
Control Mfg. In U.S.A.
USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All prices subject to change without notice
