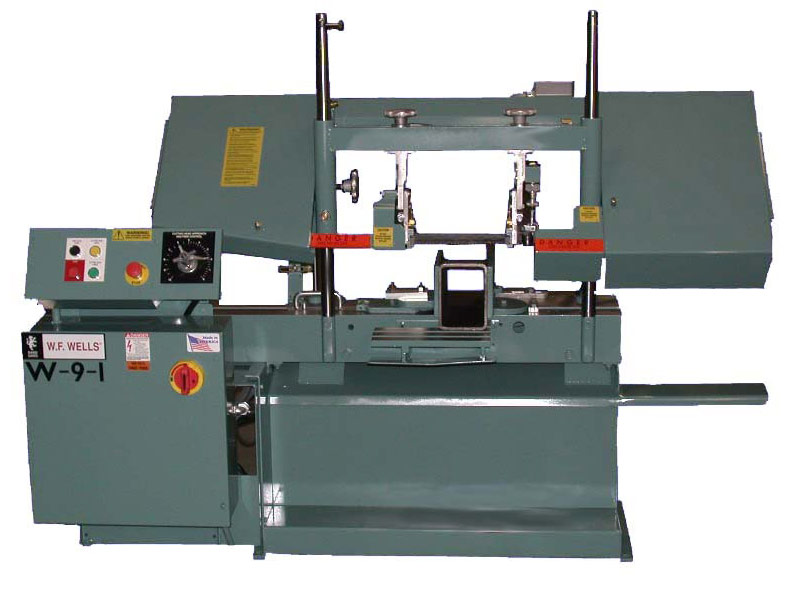

Model: W-9-1 … Variable Speed
Type: Semi-Automatic – Dual Column
Year: New
SPECIFICATIONS:
Cutting Capacity:
Round:
Max. Height…..9”
At 90 Degrees…9”
At 45 Degrees…9” (L)
Rectangle
Max. Width……17”
At 90 Degrees…9” X 17”
At 45 Degrees…8” X 9” (L)
Blade Size:………1” X .035” X 11’6”
Blade Speed(VS)…..70-380 FPM
Motor Size:………3 HP – 230V – 3 Phs
Weight:………….950 Lbs
Equipped With:
Double Column
Variable Speed
1” Bi-Metal, High Production Blade
Carbide Guides With Back-Up Rollers
Manual Vise
Manual Blade Tension
Semi-Automatic Operation
Coolant System
45 Degrees Swiveling Vise
Optional Accessories Available … (P.O.R.)
Auto Length Stop Assembly
20” W X 48” L … Discharge Table
Production Angle Vise (45 Degrees)
Work Light Wired In
Blade Tension Indicator
Manual Air Vise
Blade Break / Stall Switch
Air Hold down
Stock Stand, 6” Roller
Stock Stand, 12” Roller
Manual Hold down … Standing Roller Stock Conveyor, (Rollers) 6” Centers
Available In:
18”(W) x 60”(L) … 2,500 LBS. Cap.
18”(W) x 120”(L) … 5,000 LBS. Cap
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
