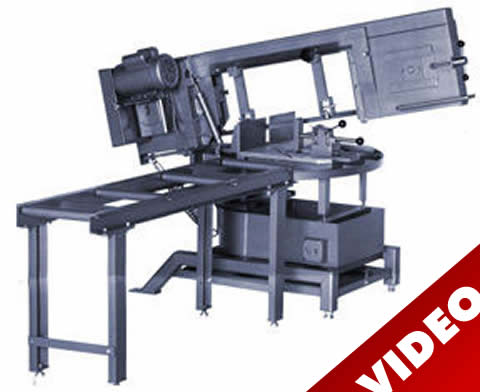

Model: 2000 … Step Pulley
Type: Scissors “Swivel Head”
Year: New
SPECIFICATIONS:
Cutting Capacity:
Round:
Max. Height….. 11″
at 90 Degrees… 11”
at 45 Degrees… 11” (L & R)
Rectangular:
Max. Width…… 17″
at 90 Degrees… 11” x 17”
at 45 Degrees… 11” x 11” (L & R)
Blade Size:……….. 12′ x 1″ x .035″
Blade Speed(3)…….. 70-250 FPM
Motor Size:……….. 1-1/2 HP-220V-1 Phs
Weight:…………… 800 Lbs
EQUIPPED WITH:
Head Swivels 45 Left or Right
Stock Remains inOne Position for all Cuts
One Step Conversion to Vertical Band Saw
Built-In Precision Protractor
Automatic Shut-Off Switch
Hydraulic Feed Control
Replaceable Aluminum Table Plate
Wheels on Base for Portability
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Stock Gauge w/Micro Adjuster
5′ Heavy Duty Stock Stand w/(4) Rollers
Single Stock Support Stand w/(1) Roller Moveable
Air System (Cleans & Cools Blade)
COMMENTS: Mfg. in USA !
