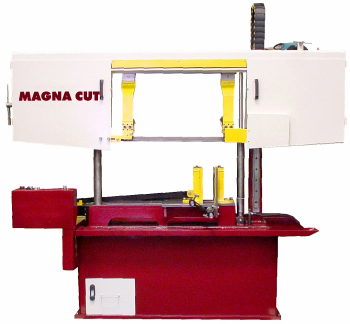

Model: 475-SA … Variable Speed
Type: “Semi-Automatic” … Note: Saw Frame Returns to “Top” Position … Automatically
Year: New
SPECIFICATIONS:
Cutting Capacity:
Round:
(Max. Height)……18”
at 90 Degrees……18”
Rectangle:
(Max. Width)…….25”
at 90 Degrees……18” x 25”
Blade Size:………….1.25” x 16’5”
Blade Speed(VS)………60 – 360
FPM Motor Size:………5 HP-230/460V-3 Phs
Weight:……………..2400 Lbs
EQUIPPED WITH:
“Semi-Automatic”
Double Column
Hydraulic Down feed
Powered Blade Brush
Adjustable Material Length Stop
Adjustable Feed Rate
Quick Acting Manual Vise
Flood Coolant System
Instruction & Parts Manual
COMMENTS:
A U.S.A. DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
