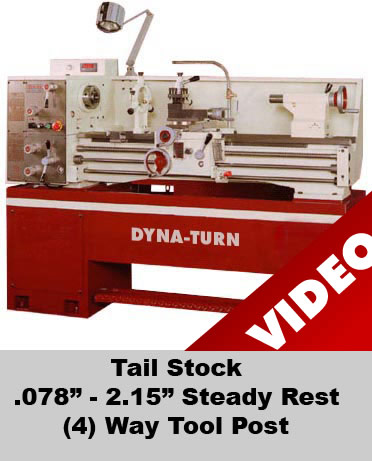

Model: “V”
Type: Tool Room Lathe
Year: New
SPECIFICATIONS:
Swing Over Bed………… 14”
Swing Over Cross Slide…. 8-5/8”
Swing In Gap………….. 20-3/4”
Dist. Between Centers….. 40”
Spindle Nose………….. D1-4
Spindle Hole………….. 1-1/2”
Bed Width…………….. 9”
Spindle Speeds(VS)…….. 36 – 2200 RPM
Threading…………….. Inch/Metric
Motor Size……………. 3 HP – 220V – 1 or 3 Phs
Tailstock Taper……….. #3 MT
Weight……………….. 1600 Lbs
Dimensions……………. 75″(l) x 30″(w) x 58″(h)
EQUIPPED WITH:
6” – 3 Jaw Chuck
8” – 4 Jaw Chuck
Chuck Guard w/Safety Switch
(4) Way Toolpost
Coolant System
Full Length Splash Guard
Chip Tray
(.078″ – 1.97″) Follow Rest
(.078 – 2.15″) Steady Rest
10″ Face Plate
Thread Dial
Micrometer Stop
Work Light
Tool Box w/Tools
Operatoin Manual
MACHINE FEATURES:
Mfg. in Tawain
1-1/2” Spindle Hole
Gap Ged Design
Hardened & Ground Headstock Gears & Bed Ways
5 HP Frequency Inverter
Main Spindle Equipped w/(2) Precision Bearings
Tailstock Barrel (Inch-Metric)
Control Switch (Electro Magnetic)
Foot Brake
Jog Button – Emergency Stop Buttong
“OPTIONAL ACCESSORIES” AVAILABLE … (P.O.R.)
8” – 3 Jaw “Set-Tru” Chuck
8” – 6 Jaw “Set-Tru” Chuck
(4) Postion Carruage Stop
Taper Turning Attachment
Lever Collet Attachment
5C Collet Set (1/16” – 1-1/8” x 1/16”)
“Aloris Type” Quick Change Toolpost w/(6) Holders
14N Jacob’s “Ball Bearing” Chuck Arbor (0” -1/2” Capacity)
#3 MT Live Center
Upgrade to 440V – 3 Phs
Newall Digital Readout
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
