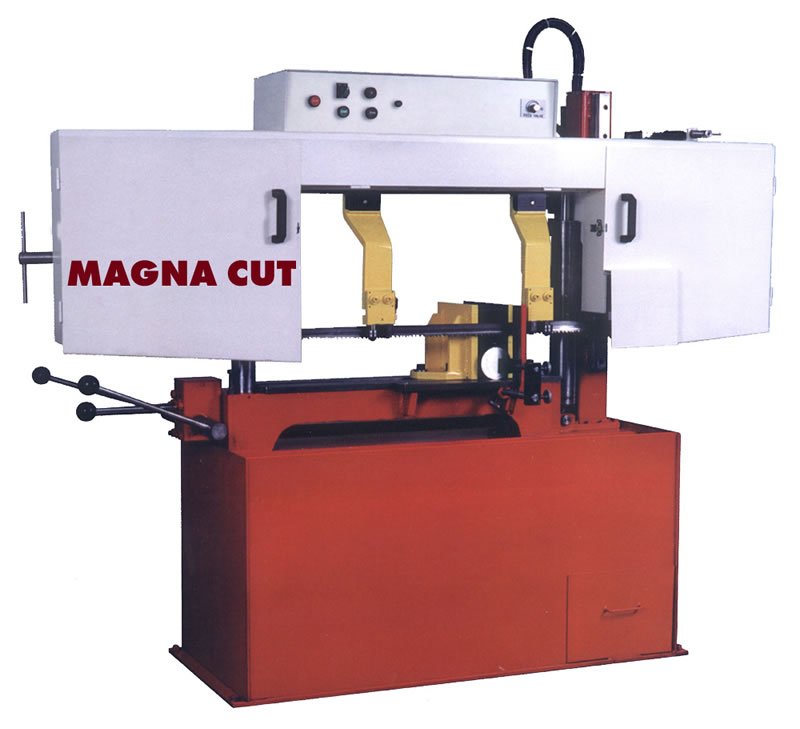

Model: 360-SA
Type: “Semi-Automatic” Note: Saw Frame Returns to “Top” Position – Automatically
Year: New
SPECIFICATIONS:
Cutting Capacity:
Round:
Max. Height…..14”
at 90 Degree….14”
at 45 Degree….10-3/4” (L)
Rectangle:
Max. Width……19”
at 90 Degree….14” x 19”
at 45 Degree….10-3/4″ x 17-3/4″ (L)
Blade Size:………1” x 13’6”
Blade Speed(5)……80-400 SPM
Motor Size:………2 HP – 220/440V – 3 Phs
Weight:………….1400 Lbs
EQUIPPED WITH:
Step Pulley
“Double column” w /Linear Bearings
(Max Capacity & Rigidity)
Semi-Automatic
Note: Saw Frame Returns to Top Position Automatically
Heavy Duty Gear Box
45 Degrees Swivel Vise
Set Travel Up & Down
Blade Overload Sensor
Automatic Shut Off at End of Cut cycle
Hydraulic Controlled Head (Up & Down)
Powered Blade Brush
Flood Coolant System
Instruction & Parts Manuals
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.)
Single Phase Electric
Variable Speed
Hydraulic Vise
(10’) Conveyor
Crating Charge
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
