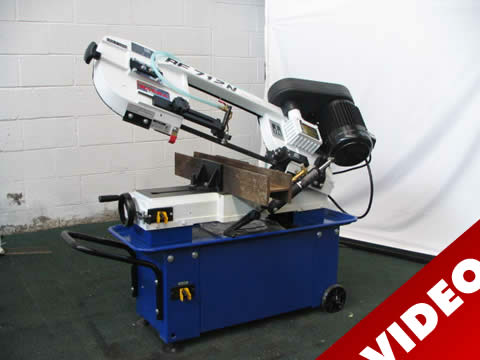

Model: 712-N
Type: Scissor Manual
Year: New
SPECIFICATIONS:
CUTTING CAPACITY:
Round:
Max. Height……….. 7”
at 90 Degrees……… 7”
at 45 Degrees……… 5” (L)
Rectangle:
Max. Width………… 12”
at 90 Degrees……… 7” x 12”
at 45 Degrees……… 4-3/4” x 4-1/2” (L)
Blade Size:…………….. 3/4” x 93”
Blade Speed(4)………….. 90 – 225 FPM
Motor Size:…………….. 1 HP-110/220V-1 Phs
Weight:………………… 300 Lbs
EQUIPPED WITH:
Step Pulley
45 Degree Swivel Vise
“H & G” Worm Gears
Quick Acting Vise
Automatic Shut Off
10” x 10” Vertical Table Attachment
Coolant
(1) Carbon Blade
Blade Chip Brush
Safety Guards
Blade Tension Adjustment
Wheel Kit
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
