6' x 9/32" EURO ROLL ... HYDRAULIC PLATE ROLL
Click to enlarge
HomeRolls - New & UsedPlate Rolls 6′ x 9/32″ EURO ROLL … HYDRAULIC PLATE ROLL
Previous product
13' x 1/4" EURO ROLL ... HYDRAULIC PLATE ROLL
13' x 1/4" EURO ROLL ... HYDRAULIC PLATE ROLL
Back to products
Next product
5' x 5/16" EURO ROLL ... HYDRAULIC PLATE ROLL
5' x 5/16" EURO ROLL ... HYDRAULIC PLATE ROLL

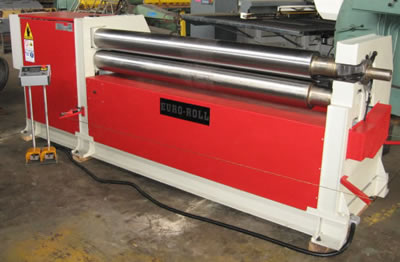

6′ x 9/32″ EURO ROLL … HYDRAULIC PLATE ROLL

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: ASM-S-200-20/7.0
Type: Hydraulic
Year: New

SPECIFICATIONS:

Roll Length:…………….. 72”
Top Roll Diameter:……….. 7.87”
Rolling Cap. (Mild Steel):… .313” (5/16”) 35,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… .281” (9/32”) 35,000 PSI Yield Material
Min. Diameter (Rolling):….. 11.80”
Min. Diameter (Pre-Bend):…. 11.80”
Number of Rolls (Total):….. (3)
Number of Rolls (Powered):… (2)
Rolling Speed:…………… 15 FPM
Motor:………………….. 7.5 HP – 220/440V – 3 Phs
Weight:…………………. 8400 Lbs

EQUIPPED WITH:

(3) Roll Initial Pinch
Mechanical Driven via Electric Motor & Gear Reducer
Manual “Swing-Out” of Top Roll
Hardened Rolls
Power Adjustment of Back / Forming Roll via Push Button
Pinch & Forming Rolls Incline for Cone Rolling
Cone Rolling Attachment
Manual Adjustment of Bottom / Pinch Roll (Hand Wheel)
Movable Control Console Equipped with:

Push Button Control of Forming Roll Position
Foot Pedal Control of Roll Rotation
E-Stop Button

Machine Perimeter E-Stop Cable

OPTIONAL ACCESSORIES AVAILABLE: … P.O.R.

Powered Adjustment Of Pinch Roll
Digital Readout For Adjustable Roll
Foot Pedal For Ball Rotation (In Lieu Of Push Buttons)

COMMENTS:  Mfg. In Europe

“USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 5976 Category: Plate Rolls
