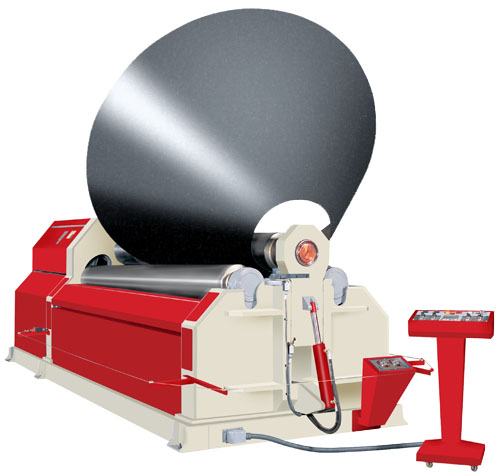

13' x 1/4" EURO ROLL ... HYDRAULIC PLATE ROLL
Click to enlarge
HomeRolls - New & UsedPlate Rolls 13′ x 1/4″ EURO ROLL … HYDRAULIC PLATE ROLL
Previous product
10' x 1/4" MAGNA ... HYDRAULIC PLATE ROLL
10' x 1/4" MAGNA ... HYDRAULIC PLATE ROLL
Back to products
Next product
6' x 9/32" EURO ROLL ... HYDRAULIC PLATE ROLL
6' x 9/32" EURO ROLL ... HYDRAULIC PLATE ROLL

13′ x 1/4″ EURO ROLL … HYDRAULIC PLATE ROLL

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: AHS-40/06
Type: Hydraulic
Year: New

SPECIFICATIONS:

Roll Length:…………….. 161”
Top Roll Diameter:……….. 11.80”
Rolling Cap. (Mild Steel):… .315” (5/16”) 36,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… .250” (1/4”)  36,000 PSI Yield Material
Min. Diameter (Rolling):….. 35.40”
Min. Diameter (Pre-Bend):…. 35.40”
Number of Rolls (Total):….. (4)
Number of Rolls (Powered):… (2)
Rolling Speed:…………… 13 FPM
Motor:………………….. 7.5 HP – 220/440V – 3 Phs
Weight:…………………. 21,850 Lbs

EQUIPPED WITH:

(4) Roll Double Pinch
“Top” Pinch Roll … (Middle)

“Powered”
Nonadjustable

“Bottom” Pinch Roll … (Middle)

”Powered”
”Motorized” Adjustment

“Bottom” Forming Roll … (Front & Rear Side)

“Non-Powered”
“Motorized” Adjustment

Hydraulic Driven via Hydraulic Motor & Gear Reducer
Hardened Rolls
(2) Adjustable Side Rolls w/DRO’s
Leveling System to Insure Parallelism of all (3) Adjustable Rolls
Forward & Reverse Rotation
Adjustable Pinch Roll Pressure
(2) Speed Rotation (Switch)
Hydraulic Drop End w/Automatic Raise of the Top Roll
Inclinable Pinch & Side Rolls for Cone Rolling
Cone Rolling Attachment
Movable Control Console Equipped with:

Push Button Control of Roll Adjustment & Rotation
Switch Control of Roll Speed
Push Button Open/Close Hydraulic Drop End
Digital Readouts
E-Stop Button

Machine Perimeter E-Stop Cable

OPTIONAL ACCESSORIES AVAILABLE: … P.O.R.

Variable Speed Rotation
(1) Overhead Support
(2) Side Supports
13’ Supports

COMMENTS:  Mfg. In Europe

“USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 5965 Category: Plate Rolls
