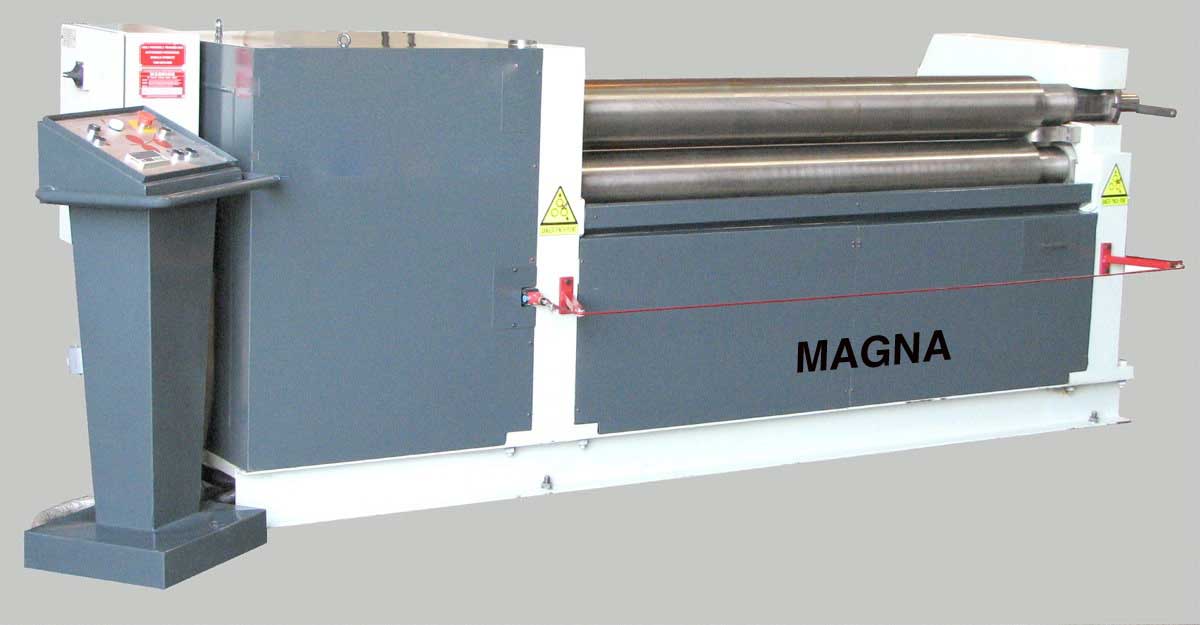

Model: 1025
Type: Hydraulic
Year: New
SPECIFICATIONS:
Roll Length:…………….. 120”
Top Roll Diameter:……….. 7.4”
Rolling Cap. (Mild Steel):… .281” 65,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… .250” 65,000 PSI Yield Material
Min. Diameter (Rolling):….. 12”
Min. Diameter (Pre-Bend):…. 12”
Number of Rolls (Total):….. (3)
Number of Rolls (Powered):… (2)
Rolling Speed:…………… 19 FPM
Motor:………………….. 5.5 HP-220/440V-3 Phs
Weight:…………………. 9,250 Lbs
EQUIPPED WITH :
Powered Roll Adjustment
Precision Pinch Roll Adjustment
“Top” Pinch Roll … (Middle)
“Powered”
Nonadjustable
“Bottom” Pinch Roll
”Powered”
”Manual” Adjustment
“Forming Roll … (Rear Side)
“Non-Powered”
“Motorized” Adjustment
Top Roll Swing Out
Emergency Trip Line
Pedestal Control
Quick Roll Adjustment
Roll Position Indicators
Crowned Rolls
Low Voltage Push Button Controls
Hardened Rolls
Cone Rolling Attachment
DRO for Forming Roll
