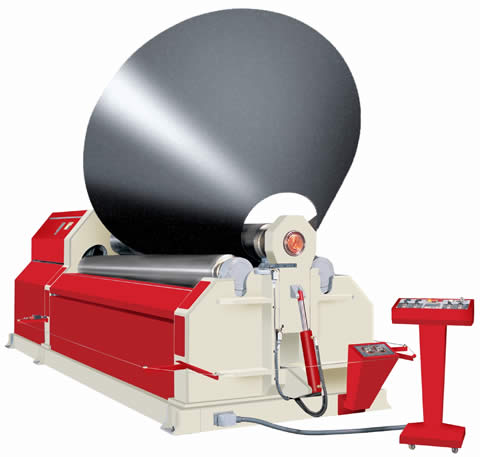

5' x 5/16" EURO ROLL ... HYDRAULIC PLATE ROLL
Click to enlarge
HomeRolls - New & UsedPlate Rolls 5′ x 5/16″ EURO ROLL … HYDRAULIC PLATE ROLL
Previous product
6' x 9/32" EURO ROLL ... HYDRAULIC PLATE ROLL
6' x 9/32" EURO ROLL ... HYDRAULIC PLATE ROLL
Back to products
Next product
13' x 5/16" EURO ROLL ... HYDRAULIC PLATE ROLL
13' x 5/16" EURO ROLL ... HYDRAULIC PLATE ROLL

5′ x 5/16″ EURO ROLL … HYDRAULIC PLATE ROLL

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: AHS-15/08
Type: Hydraulic
Year: New

SPECIFICATIONS:

Roll Length:…………….. 5’
Top Roll Diameter:……….. 7.50”
Rolling Cap. (Mild Steel):… .375” (3/8”)  36,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… .312” (5/16”) 36,000 PSI Yield Material
Min. Diameter (Rolling):….. 22.50”
Min. Diameter (Pre-Bend):…. 22.50”
Number of Rolls (Total):….. (4)
Number of Rolls (Powered):… (2)
Rolling Speed:…………… 2 Speed
Motor:………………….. 4 HP – 220/440V – 3 Phs
Weight:…………………. 6600 Lbs

EQUIPPED WITH :

(4) Roll Double Pinch
“Top” Pinch Roll … (Middle)

“Powered”
Nonadjustable

“Bottom” Pinch Roll … (Middle)

”Powered”
”Motorized” Adjustment

“Bottom” Forming Roll … (Front & Rear Side)

“Non-Powered”
“Motorized” Adjustment

Hydraulic Drive
Powered Top & Pinch Rolls
Adjustable Pressure of Pinch Roll w/Gauge
Hardened Rolls
Cone Rolling
Movable Control Console Equipped with:

Roll Adjustment
Roll Rotation
Roll Rotation Speed
Open/Close Hinge

DRO of (2) Side Roll Positions
Independently Adjustable Top & Side Rolls Via Push Buttons
Roll Leveling System
(2) Rotational Speeds
Hydraulic Drop End
Auto Top Roll Raise
Emergency Stop Cable
Emergency Stop Button
Roll Brake

COMMENTS:  Mfg. In Europe

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 5853 Category: Plate Rolls
