5' x 10 Ga. EURO ROLL ... HYDRAULIC PLATE ROLL
Click to enlarge
HomeRolls - New & UsedPlate Rolls 5′ x 10 Ga. EURO ROLL … HYDRAULIC PLATE ROLL
Previous product
4' x 10 Ga. EURO ROLL ... HYDRAULIC PLATE ROLL
4' x 10 Ga. EURO ROLL ... HYDRAULIC PLATE ROLL
Back to products
Next product
6' x 10 Ga. EURO ROLL ... HYDRAULIC PLATE ROLL
6' x 10 Ga. EURO ROLL ... HYDRAULIC PLATE ROLL

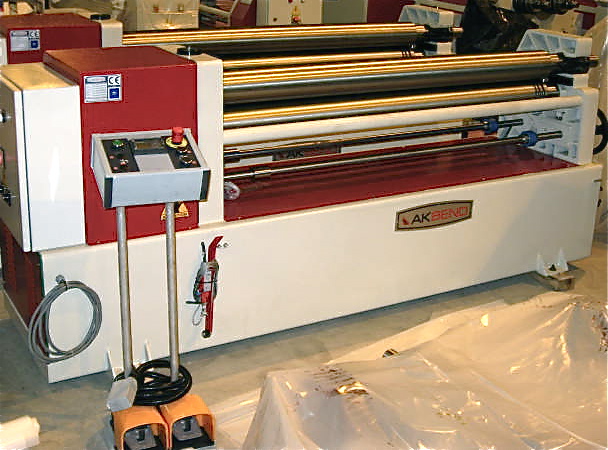

5′ x 10 Ga. EURO ROLL … HYDRAULIC PLATE ROLL

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model:  ASM-110-15/3.0
Type: Hydraulic
Year:  New

SPECIFICATIONS:

Roll Length:…………….. 60”
Top Roll Diameter:……….. 4.33”
Rolling Cap. (Mild Steel):… .135” (10 GA) 35,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… .120” (11 GA) 35,000 PSI Yield Material
Min. Diameter (Rolling):….. 6.49”
Min. Diameter (Pre-Bend):…. 6.49”
Number of Rolls (Total):….. (3)
Number of Rolls (Powered):… (2)
Rolling Speed:…………… 15 FPM
Motor:………………….. 3 HP – 220/440V – 3 Phs
Weight:…………………. 2,750 Lbs

EQUIPPED WITH :

 (3) Roll Initial Pinch
“Top” Pinch Roll … (Front Side)

“Motorized”
Nonadjustable

“Bottom” Pinch Roll … (Front Side)

”Motorized”
”Hand Wheel” Adjustment

“Bottom” Forming Roll … (Rear Side)

“Non-Motorized”
“Hand Wheel” Adjustment

Mechanical Driven via Electric Motor & Gear Reducer
Manual “Swing-Out” of Top Roll
Manual Adjustment of Back / Forming Roll (Hand Wheel)
Precision Scales & Pointer Mounted on Frame for Roll Position (Pinch & Forming)
Pinch & Forming Rolls Incline for Cone Rolling
Cone Rolling Attachment
Manual Adjustment of Pinch Roll (Hand Wheel)
Movable Control Console Equipped with:

Foot Pedal Control of Roll Rotation
E-Stop Button

Machine Perimeter E-Stop Cable

OPTIONAL ACCESSORIES AVAILABLE: P.O.R.

Powered Adjustment Of Forming Role
Digital Readout For Forming Roll
Hardened Rolls
Foot Pedal For Ball Rotation (In Lieu Of Push Buttons)

COMMENTS:  Mfg. In Europe

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL: IMCO at 614-914-5087

F.O.B.: Location

TERMS: Check w/Order

All prices subject to change without notice

SKU: 6047 Category: Plate Rolls
