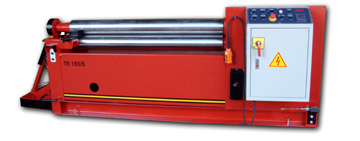

Model: TR 180/6
Type: Hydsraulic
Year: New
SPECIFICATIONS:
Roll Length …………. 72”
Top Roll Diameter ……. 7.10”
Rolling Capacity …….. 1/4″
Pre-Bend (Mild Steel) … 1/4″
Number of Rolls ……… 3
Rolling Speed ……….. 16 FPM
Motor ………………. 5 HP – 220/440V – 3 Phs
Machine Weight ………. 5,900 Lbs
EQUIPPED WITH:
Hydraulic Drive – Note: Positive Drive Regardless Of Position Of Pinch Roll
(3) Roll Initial Pinch
Rear Bending Roll Hydraulically Adjusted
Hydraulic Tilting Of Rear Bending Roll For Cone Rolling
Cone Bending Attachment
Digital Readout For Positioning Of Rear Bending Roll
Hydraulically Operated Drop End For Quick Removal Of Rolled Product
Hydraulic Lower Pinch Roll Adjusted W/Power Pinch Gauge Control
Manual Tilt Of Lower Pinch Roll
Forward/Reverse Rotation Controls (Console Mounted & Remote Hand Control)
Upper & Lower Pinch Rolls Driven All Rolls Heat Treated To 50Rc
Emergency Stop Palm Button On The Control Console
Emergency Stop Cable Around The Machine
Hydraulic Oil, Tools & Manuals
Warranty: (12) Months – Parts
