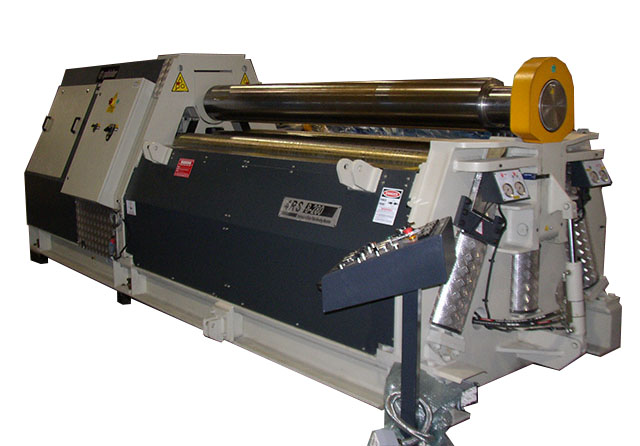

5' X 3/8" SAHINLER ...  w/DOUBLE PINCH
Click to enlarge
Home Rolls - New & Used Plate Rolls 5′ X 3/8″ SAHINLER … w/DOUBLE PINCH
5' X 5/16" SAHINLER ...  w/DOUBLE PINCH
5' X 5/16" SAHINLER ... w/DOUBLE PINCH
Back to products
6' x 5/16" SAHINLER ... w/DOUBLE PINCH
6' x 5/16" SAHINLER ... w/DOUBLE PINCH

5′ X 3/8″ SAHINLER … w/DOUBLE PINCH

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: HMS 1550-220
Type: Double Pinch
Year: New

SPECIFICATIONS:

Roll Length……………… 61”
Top Roll Diameter………… 8.66”
Rolling Cap. (Mild Steel)…. 1/2”
Pre-Bend Cap. (Mild Steel)… 3/8”
Min. Diameter (Rolling)…… 13”
Min. Diameter (Pre-Bend)….. 13”
Number Of Rolls (Total)…… 4
Number Of Rolls (Powered)…. 2
Rolling ………………… 16.5 Fpm
Motor…………………… 7 Hp – 220/440V – 3 Phs
Weight………………….. 9350 Lbs
Dimensions (L X W X H)……. 138” X 59” X 54”

EQUIPPED WITH:

Movable Control Console
Roll Adjustment & Rotation (Push Button)
Roll Speed (Switch)
Open/Close Hydraulic Drop End (Push Button)
Digital Readouts
Machine Perimeter E-Stop Cable
Machine & Console Mounted E-Stop Buttons
Cone Rolling Attachment (Reduced Capacity)

MACHINE FEATURES:

Double Pinch Rolls,
Top & Bottom (Powered),
Side Rolls (Non Powered)
Hardened Rolls
Hydraulic Driven Rolls (Hydraulic Motor & Planetary Gear  Reducer)
(2) Adjustable Side Rolls W/Digital Readout
Pinch & Side Rolls Independently Adjustable
Leveling System To Insure Parallelism Of All (3) Adjustable Rolls
Forward & Reverse Rotation (Push Button)
Adjustable Pinch W/Readout
(1) Speed Rotation
Hydraulic Drop End W/Automatic Raise Of Top Roll
Inclinable Pinch & Side Rolls For Cone Rolling

OPTIONAL ACCESSORIES:

Available Upon Request

 “USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All Prices Subject To Change Without Notice

SKU: 13383 Category: Plate Rolls
