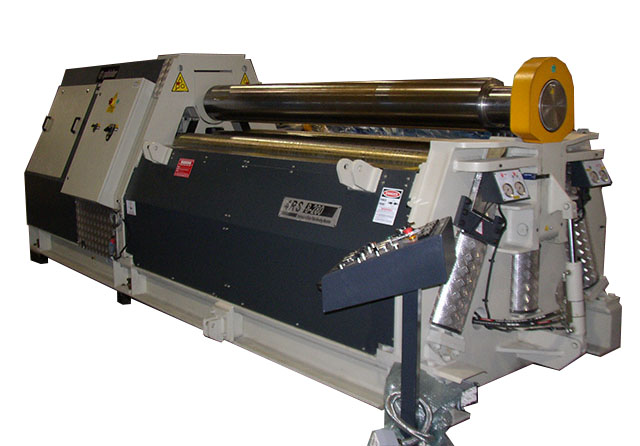

6' x 5/16" SAHINLER ... w/DOUBLE PINCH
Click to enlarge
Home Rolls - New & Used Plate Rolls 6′ x 5/16″ SAHINLER … w/DOUBLE PINCH
5' X 3/8" SAHINLER ...  w/DOUBLE PINCH
5' X 3/8" SAHINLER ... w/DOUBLE PINCH
Back to products
6' x 3/8" SAHINLER ... w/DOUBLE PINCH
6' x 3/8" SAHINLER ... w/DOUBLE PINCH

6′ x 5/16″ SAHINLER … w/DOUBLE PINCH

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: HMS 2050-220
Type: Double Pinch
Year: New

SPECIFICATIONS:

Roll Length……………… 80.7”
Top Roll Diameter………… 8.66”
Rolling Cap. (Mild Steel)…. 3/8”
Pre-Bend Cap. (Mild Steel)… 5/16”
Min. Diameter (Rolling)…… 13”
Min. Diameter (Pre-Bend)….. 13”
Number of Rolls (Total)…… 4
Number of Rolls (Powered)…. 2
Rolling Speed……………. 16.5 FPM
Motor…………………… 7 HP – 220/440V – 3 Phs
Weight………………….. 10,560 Lbs
Dimensions (L x W x H)……. 158”L x 59”W x 54”H

EQUIPPED WITH:

Movable Control Console

Roll Adjustment & Rotation (Push Button)
Roll Speed (Switch)
Open/Close Hydraulic Drop End (Push Button)
Digital Readouts

Machine Perimeter E-Stop Cable
Machine & Console Mounted E-Stop Buttons
Cone Rolling Attachment (Reduced Capacity)

MACHINE FEATURES:

Double Pinch Rolls,

Top & Bottom (Powered),
Side Rolls (Non Powered)

Hardened Rolls
Hydraulic Driven Rolls
(2) Adjustable Side Rolls W/Digital Readout
Pinch & Side Rolls Independently Adjustable
Leveling System To Insure Parallelism Of All (3) Adjustable Roll Forward & Reverse Rotation (Push Button)
Adjustable Pinch W/Readout
(1) Speed Rotation
Hydraulic Drop End W/Automatic Raise Of Top Roll
Inclinable Pinch & Side Rolls For Cone Rolling

OPTIONAL ACCESSORIES:

Available Upon Request

“USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice



SKU: 13385 Category: Plate Rolls
