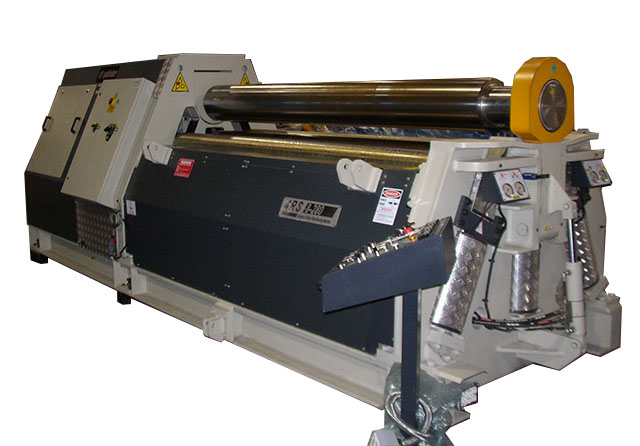

Model: HMS 2050-250
Type: Double Pinch
Year: New
SPECIFICATIONS:
Roll Length……………… 80.7”
Top Roll Diameter………… 9.84”
Rolling Cap. (Mild Steel)…. 1/2”
Pre-Bend Cap. (Mild Steel)… 3/8”
Min. Diameter (Rolling)…… 15”
Min. Diameter (Pre-Bend)….. 15”
Number of Rolls (Total)…… 4
Number of Rolls (Powered)…. 2
Rolling Speed……………. 16.5 FPM
Motor…………………… 10 HP – 220/440V – 3 Phs
Weight………………….. 11,770 Lbs
Dimensions (L x W x H)……. 158” x 59” x 54”
EQUIPPED WITH:
Movable Control Console
Roll Adjustment & Rotation (Push Button)
Roll Speed (Switch)
Open/Close Hydraulic Drop End (Push Button)
Digital Readouts
Machine Perimeter E-Stop Cable
Machine & Console Mounted E-Stop Buttons
Cone Rolling Attachment (Reduced Capacity)
MACHINE FEATURES:
Double Pinch Rolls
Top & Bottom (Powered)
Side Rolls (Non Powered)
Hardened Rolls
Hydraulic Driven Rolls
(2) Adjustable Side Rolls W/Digital Readout
Pinch & Side Rolls Independently Adjustable
Leveling System To Insure Parallelism Of All (3) Adjustable Rolls
Forward & Reverse Rotation (Push Button)
Adjustable Pinch W/Readout
(1) Speed Rotation
Hydraulic Drop End W/Automatic Raise Of Top Roll
Inclinable Pinch & Side Rolls For Cone Rolling
OPTIONAL EQUIPPMENT:
Available Upon Request
