Model: H-32-A … Automatic
Type: Double Column
Year: New
SPECIFICATIONS:
Cutting Capacity:
Rounds:
Max. Height….. 32”
at 90 Degrees… 32”
Rectangles:
Max. Width…… 32”
at 90 Degrees… 32” x 32”
Blade Size:……….. 2-5/8” x .063” x 30’4”
Blade Speed:(VS)…… 40-300 SFM
Motor Size:……….. 20 HP-220/440V-3 Phs
Weight:…………… 28,000 Lbs
EQUIPPED WITH:
Mitsubishi Plc 100 Control With
(99) Job Memory Storage w/(5) Jobs In Queue
Cutting Length
Quantity Of Pieces
Blade Speed & Down Feed Rate
Dual Post
Bar Feed … (2) Hydraulic Full Stroking Vises
(1) w/(0 – 32”) Shuttle Stroke w/Multi-Indexing
Hydraulic Positive Down Feed
Blade Breakage Switch
Variable Frequency Drive
Hydraulic Blade Tension
Hydraulically Driven Chip Conveyor
Powered Chip Brush
Powered Guide Arm Positioning
Work Light
Coolant System W/Wash Down Hose
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Full Capacity Overhead Bundle Clamping (2) Vises
Out Of Stock Switch
Laser Beam Light
Vertical Rollers
6 Deg. Canted Head
Variable Vise Pressure (2) Vises
Mist Lubrication System
Blade Deviation Monitor
Idler Conveyor (10’ Section)
COMMENTS:

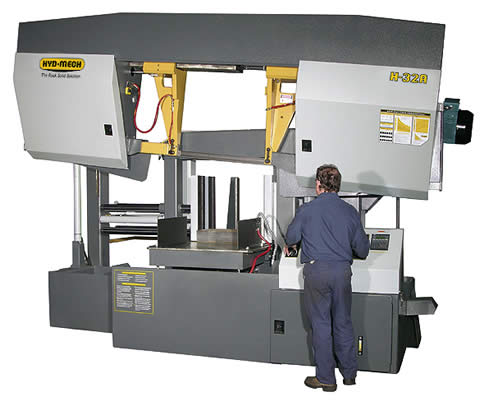

Catalog Photo
Mfg. in North America
