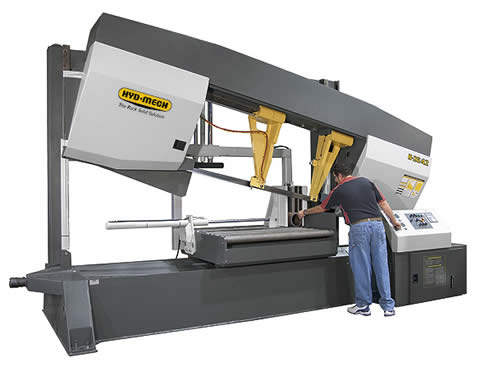

Model: H-26/42 … Semi-Automatic
Type: Dual Column
Year: New
SPECIFICATIONS:
Cutting Capacity:
Rounds:
Max. Height…… 32”
at 90 Degrees…. 32”
Rectangles:
Max. Width……. 42”
at 90 Degrees…. 26” x 42”
Blade Size…………. 2-5/8” x .063” x 33’
Blade Speed(VS)…….. 75 – 300 SFM
Motor Size…………. 20 HP-220/440V-3 Phs
Weight…………….. 21,000 Lbs
EQUIPPED WITH:
Semi Automatic
Dual Post
12 Degree Canted Head
Digital Feed Rate Meter
Hydraulic Positive Down Feed
Hydraulically Driven … Head Return To Top
Hydraulic Full Stroking Vise
Split Front Vise
Variable Frequency Drive
Hydraulic Blade Tension
Hydraulically Driven Chip Conveyor
Powered Blade Brush
Blade Breakage Switch
Hydraulic Powered Guide Arm Positioning
Roller Feed Table
Work Light
Coolant System w/Wash Down Hose
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Full Capacity Overhead Bundle Vise
Outboard Vise
Mist Lubrication
Pedestal Control Console
Idler Conveyor (10’ Section)
COMMENTS: Mfg. In North America
