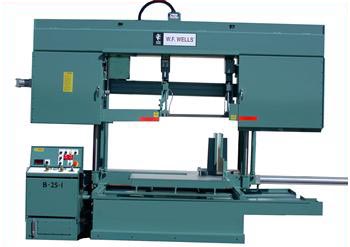

Model: B-25-1 … Semi-Automatic
Type: Double Column
Year: New
SPECIFICATIONS:
Cutting Capacity:
Round
Max. Height……….. 25”
At 90 Degrees……… 25”
At 45 Degrees……… 24”
Rectangle
Max. Width………… 40”
At 90 Degrees……… 25”
At 45 Degrees……… 25” x 24”
Blade Size:……………. 1-1/4” x .042” x 270”
Blade Speed(V.S.)………. 60-500 FPM
Motor Size:……………. 7.5 HP-230V-3 Phs
Weight:……………….. 5800 Lbs
EQUIPPED WITH:
MACHINE FEATURES
Double Column w/Linear Bearings-(Max. Capacity & Rigidity)
“Semi-Automatic” Cut Cycle – Saw Frame – Returns to Top Position Automatically
Variable Blade Speed
Set Travel Up & Down
Can be set to allow Notching of Blocks)
Adjustable Hydraulic Feed Rate & Force
Manual Saw Control
Automatic Shut Off at End of Cut
STANDARD EQUIPMENT
(1) Bi-Metal Blade
Powered Blade Brush
Carbide Blade Guides w/Rollers
Full Guarding w/Interlocks
Hydraulic Vise & Manual 45Ý Swivel
Hydraulic Blade Tension w/Indicator
Coolant System
Instruction & Parts Manuals
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Hydraulic Hold Down, Saw Vise
Hydraulic Chip Conveyor
40” x 56” Discharge Table w/Stock Stop
Blade Break/Stall Switch
High Speed Drive & Guides (500-3000 SFPM)
40” x 5’ Manual Conveyor
40” x 10’ Manual Conveyor
40” x 10’ Hydraulic Powered Conveyor
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO At 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change with notice
