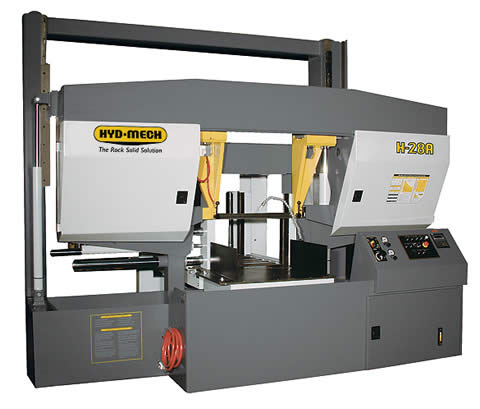

Model: H-28-A … Automatic
Type: Daul Column
Year: New
SPECIFICATIONS:
Cutting Capacity:
Rounds:
Max. Height….. 28”
at 90 Degrees… 28”
Rectangles:
Max. Width…… 28”
at 90 Degrees… 28” x 28”
Blade Size:……….. 2” x .063” x 25’ – 0”
Blade Speed:(VS)…… 40-300 SFM
Motor Size:……….. 10 HP – 220/440V – 3 Phs
Weight:…………… 18,000 Lbs
EQUIPPED WITH:
Mitsubishi PLC 100
(99) JOB Memory Storage w/(5) Jobs In Queue
Cutting Length
Quantity of Pieces
Blade Speed & Down feed Rate
Dual Column
Bar Feed … (2) Hydraulic Full Stroking Vises
(1) Vise w/(0 – 32”) Shuttle Stroke – Multi-Index Capacity
Hydraulic Positive Down feed
Hydraulic Blade Tension
Variable Frequency Drive
Hydraulic Blade Tension
Hydraulically Driven Chip Conveyor
Powered Chip Brush
Blade Breakage Switch
Powered Guide Arm Positioning
Work Light
Coolant System w/Wash Down Hose
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Full Capacity Overhead Bundle Clamping (2) Vises
Out Of Stock Switch
Laser Beam Light
Vertical Rollers
6 Deg. Canted Head
Variable Vise Pressure (2) Vises
Mist Lubrication System
Blade Deviation Monitor
Idler Conveyor (10’ Section)
COMMENTS: Mfg. in North America
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
