24" x 170" VICTOR ... LATHE 4-1/8" SPINDLE HOLE
Click to enlarge
Home Lathes New and Used Lathes - Conventional 24″ x 170″ VICTOR … LATHE 4-1/8″ SPINDLE HOLE

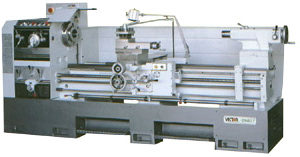

24" x 120" VICTOR ... LATHE 4-1/8" SPINDLE HOLE
24" x 120" VICTOR ... LATHE 4-1/8" SPINDLE HOLE
Back to products
21" x 60" TRUMP-TURN ... CNC LATHE
21" x 60" TRUMP-TURN ... CNC LATHE

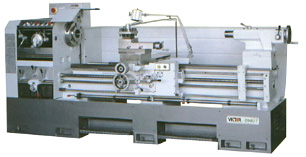

24″ x 170″ VICTOR … LATHE 4-1/8″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model:  2400-T
Type: Heavy Duty Lathe
Year: New

SPECIFICATIONS:

Headstock Type………… Geared Head
Swing Over Bed………… 23-5/8″
Swing Over Cross Slide…. 15″
Swing In Gap………….. 32-1/4″
Dist. Between Centers….. 170″
Spindle Nose………….. D1-11
Spindle Hole………….. 4-1/8″
Bed Width…………….. 16-1/2″
Spindle Speeds………… (12) 25 – 1200 RPM
Threading…………….. Inch / Metric
Motor Size……………. 20 HP – 220/440V – 3 Phs
Tailstock Taper……….. #5 MT
Weight……………….. 11,000 Lbs
Dimensions……………. 233″(l) x 54″(w) x 75″(h)

EQUIPPED WITH:

20” – 4 Jaw Chuck
(1.5” – 10.5”) Steady Rest w/Rollers
Follow Rest
(4) Way Tool Post
20” Face Plate
Micro Carriage Stop
Halogen Work Light
Chuck Cover w/Limit Switch
Coolant System

MACHINE FEATURES

4-1/8″ Spindle Hole
Magnetic Multi Disc Clutches for Forward – Neutral – Reverse
Tailstock … (2) Speed
(4) Way Rapid Traverse
Magnetic Foot Brake
“Meehanite Casting” Bed
H & G Gears & Headstock
Gap Bed
Jog Button for Speed Changes
Rigid Compound for Heavy Cutting
Spindle Supported by (3) Precision Bearings

OPTIONAL ACCESSORIES

15″ – 3 Jaw Chuck
15″ – 3 Jaw Chuck (Zero Set)
15″ – 6 Jaw Chuck (Zero Set)
20″ – 3 Jaw Chuck
(8.5″ – 13″) Steady Rest w/Rollers
15-3/4″ Drive Plate
(6) Position Bed Stop
#5 MT Live Center
Taper Turning Attachment
On Carriage Splash Guard
Full Length Splash Guard
Quick Change Tool Post w/(5) Holders
(2) Axis Newall DRO – Installed

“USA” IMPORTER – DISTRIBUTION & PARTS CENTER



Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.: Location

TERMS:  Check w/Order

All prices subject to change without notice
