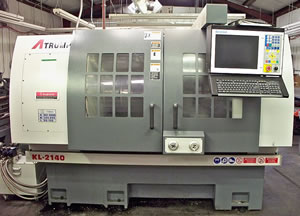

Model: KL-2160 … Centroid T-400i CNC Control
Spindle Hole: 3-3/8″
Year: New
Type: Flat Bed
SPECIFICATIONS:
Swing Over Bed……….. 21″
Swing Over Cross Slide… 12″
Swing In Gap…………. N/A
Dist Between Centers….. 60″
Max. Turning Length…… 561.2″
Spindle Nose…………. D1-11
Spindle Hole…………. 3-3/8″ (Optional 4-1/8″)
Bed Width……………. 13.78″
Spindle Ranges……….. 3
Spindle Speeds(VS)……. 25 – 2200 RPM
Tailstock Taper………. #5 MT
Rapid Traverse……….. 180 IPM
Motor Size…………… 10 HP – 220V – 3 Phs
Control Type…………. Centroid T-400i
Weight………………. 6930 Lbs
Dimensions…………… 126″(l) x 74″(w) x 77″(h)
EQUIPPED WITH
Centroid T-400i CNC Control
“Conversational”
“G” Code
15” Color Monitor
RS-232 & Ethernet Ports
(1) GB Solid State Hard Drive
Shop Floor Programming(Conversational)
Totally Enclosed (Sliding Door)
Safety Chuck Guard
Automatic Lube System
Coolant System
Back Plate
Halogen Work Light
Tool Box w/Tools
Leveling Bolts & Plate
Operations Manual
MACHINE FEATURES
“Flat Bed” Design … “H & G” Ways
(8) Position Turret
“Dual” Hand Wheels for Manual Operation
“Laser” Tested Accuracy
“T-Slotted” Cross Slide
H & G Precision Ballscrews & Bedways
Massive Meehanite Casting … (1) Piece Construction
(3) Speed Geared Headstock – Automatic Shift
Tailstock (Manual)
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Upgrade to 4.13″ Spindle Hole (15 HP)
10” – 3 Jaw Chuck (Semi Steel Body)
12” – 3 Jaw Chuck (Semi Steel Body)
12” – 4 Jaw Chuck (Semi Steel Body)
8” – 3 Jaw Chuck … (2” Hole) … (Steel Body)
12” – 3 Jaw Chuck … (4.05” Hole) … (Steel Body)
16” – 4 Jaw Chuck … (5.34” Hole) … (Steel Body)
12” – 4 Jaw Chuck … (5” Hole) … (Steel Body)
16” – 4 Jaw Chuck … (3.93” Hole) w/Adaptor Plate … (Steel Body)
20” – 4 Jaw Chuck … (4.92” Hole) w/Adaptor Plate … (Steel Body)
(4) Way Electric Toolpost
Quick Change Toolpost w/(4) Holders
(8) Station “Automatic” Electric Turret (1” Max Tool Size)
Chip Conveyor … Chain or Screw Type
(2.3” – 11″) Steady Rest … Roller Type
(1.20 – 9.8″) Follow Rest
Transformer (220V – 440/480V)
Rigid Tapping
Installation & Set-Up… Per Day … Plus Travel & Expenses
Control Training … Per Day … Plus Travel & Expenses
COMMENTS: Centroid Control Mfg. In U.S.A. !
