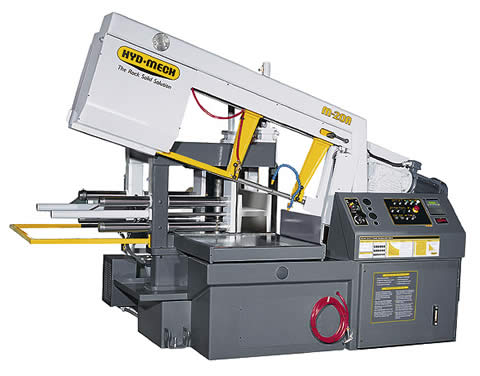

Model: M-20-A … Mitsubishi PLC 100 Control
Year: New
SPECIFICATIONS:
Cutting Capacity:
Rounds:
Max. Height….. 20”
at 90 Degrees… 20”
at 45 Degrees… 20” (L)
Rectangles:
Max. Width…… 30”
at 90 Degrees… 20” x 30”
at 45 Degrees… 14” x 20” (L)
Blade Size:……….. 1-1/2” x .050 x 20’6”
Blade Speed:(VS)…… 50 – 350 SFM
Motor Size:……….. 10 HP-220/440V-3 Phs
Weight:…………… 7700 Lbs
EQUIPPED WITH:
Mitsubishi PLC 100 Control
(99) Job Memory Storage w/5 Jobs in Queue
Cutting Length
Quantity Of Pieces
Blade Speed
Down Feed Rate
Bar Feed w/(2) Hydraulic Full Stroking Vises
(1) w/(0-33”) Multi – Indexing Shuttle Stroke
Blade Breakage Switch
Powered Chip Brush
Hydraulic Chip Conveyor
Hydraulic Positive Down feed
Hydraulic Blade Tension
Hydraulic Head Swing
Hydraulic Powered Guide Arm Positioning
Hydraulic Controlled Vise
Variable Frequency Drive
OPTIONAL ACCESSORIES AVAILABLE … P.O.R
Chip Bucket
Out of Stock Switch
Variable Vise Pressure – (2) Vises
Outboard Vise
Outboard Vise w/Overhead Clamps
Out of Stock Switch
Mist Lubrication System
5′ Roller Conveyor
10′ Roller conveyor0
Full Capc. Overhead Bundle (2) Vises
Blade Deviation Monitor
COMMENTS:
Warranty: (2) Years Parts
Mfg. in North America
