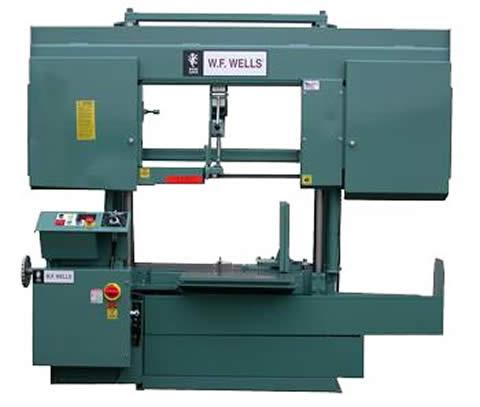

Model : H-2024-3
Type: Semi-Automatic – Hydraulic Double Column
Year: New
SPECIFICATIONS:
Cutting Capacity:
Rounds:
Max. Height….. 20” Dia.
At 90 Degrees… 20” Dia.
At 45 Degrees… 13” Dia.
Rectangles:
Max. Width…… 24”
At 90 Degrees… 20” H x 24” W
At 45 Degrees… 20” H x 13” W
Blade Size:………… 1-1/2” x .050 x 240”
Blade Speed(VS)…….. 60 – 500 SFPM
Blade Guides……….. Roller Guides w/Carbide Inserts
Motor Size:………… 10 HP – 230/440V – 3 Phs
Weight:……………. 3900 Lbs
EQUIPPED WITH:
1” Bi-Metal Blade
Powered Blade Brush
Carbide Spring Loaded Blade Guides
Full Guarding w/Interlocks
“Hydraulic” Vise
“Hydraulic” Blade Tension w/Indicator
Flood Coolant System
Instructions & Parts Manual
MACHINE FEATURES:
Double Column w/Linear Bearings (Max Capacity & Rigidity)
“Semi-Automatic” Cut Cycle – Saw Frame Returns to Top Position Automatically
Variable Blade Speed
Set Travel Up & Down (Can be set to Allow Notching of Blocks)
Adjustable Hydraulic Feed Rate & Force
Manual Saw Control
Automatic Shut Off at End of Cut
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Manual Hydraulic Hold Down
Auto Lenght Stop
20” W x 48” L Discharge Table
24” W x 48” L Discharge Table
Work Light
Blade Break / Stall Switch
Electronic Chip Conveyor (Auger Style)
High Speed Drive & Guides (400-3000 FPM)
6” Centers-Free Standing Roller Stock Conveyor
21” x 5’ x 2500 Lbs Capacity
21” x 10’ x 10,5000 Lbs Capacity
24” x 5’ x 5,000 Lbs Capacity
24” x 10’ x 10,000 Lbs Capacity
21” x 10’ Electronic Powered Conveyor
COMMENTS: Mfg. In U.S.A. !
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part !
Have A Technical Question !
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
