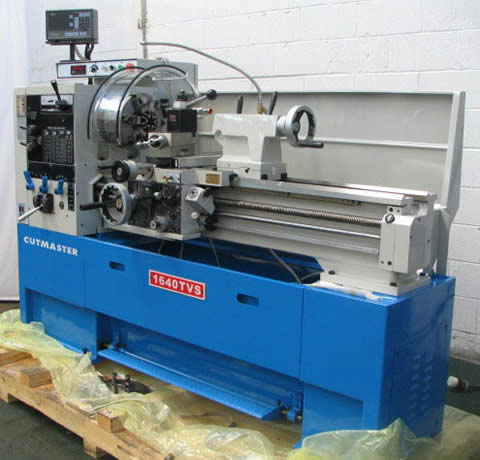

Model: TVS Series
Type: Engine Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 16”
Swing Over Cross Slide… 10-3/8”
Swing in Gap…………. 23”
Dist Between Centers….. 60”
Max Turning Length……. 60”
Spindle Nose…………. D1-6
Spindle Hole…………. 2-1/16”
Bed Width……………. 10-1/4”
Spindle Speeds(VS)……. 20 – 2500 RPM
Threading……………. Inch / Metric
​Motor Size…………… 5 HP – 220V – 3 Phs
Tailstock Taper………. #4 MT
Gross Weight…………. 4150 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
Variable Speed Drive
8”-3 Jaw Chuck
10”-4 Jaw Chuck
(4) Way Tool Post
Full Length Splash Guard
Follow Rest
Steady Rest
Foot Brake
Face Plate
Coolant
MACHINE FEATURES:
2-1/16” Spindle Hole
Inverter Controlled Motor (Variable Speed
Gap Bed Design
H & G Bed Ways
OPTIONAL ACCESSORIES AVAILABLE:
12” – 3 Jaw Chuck
12” – 4 Jaw “Steel” Chuck
Micro Carriage Stop
Taper Attachment … Installed
Lever Type 5C Collet Attachment … Installed
5C Collet Set (1/8” – 1-1/8” x 1/16”)
440V (Variable Speed)
Halogen Work Light
Chuck Guard
Live Center #4 MT
Aloris Type Q.C. Tool Post w/Holders
Newall DRO … Installed
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
